Jyoti Steels is a well-known producer and supplier of Copper Nickel 70/30 Bars in Mumbai, India. With years of experience in the industry and quality focus, the company offers high-performance bars suitable for challenging marine and industrial uses. Jyoti Steels is known to deliver superior-quality materials and supplies both domestic and international markets with timely delivery and competitive prices. Their Copper Nickel 70/30 Bars are produced according to international standards and are a trusted option for customers looking for strength, corrosion resistance, and durability in their metal products.
Copper Nickel 70/30 Bars are made up of about 70% copper and 30% nickel, with minute quantities of iron (up to 0.4%) and manganese (up to 1%) to improve corrosion resistance and hardenability. The bars possess good mechanical characteristics, such as tensile strength of about 520 MPa, yield strength of 150 MPa, and elongation of 30%. The physical characteristics are 8.94 g/cm³ density, 1170°C melting point, and 29 W/m·K thermal conductivity. These characteristics qualify Copper Nickel 70/30 for usage in high-stress conditions exposed to seawater and aggressive chemicals.
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI |
|---|---|
| Standard Specification | ASTM B111 |
| ASME SB111 | |
| Size | 15NB to 150NB IN |
| Diameter | 3.17mm to 350mm diameter |
| Length | 100 mm to 3000 mm Long & Above |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |

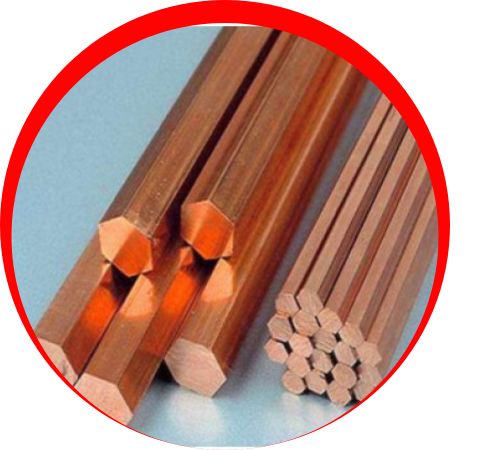

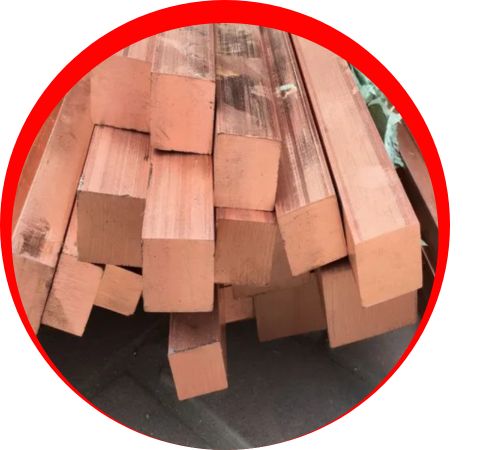

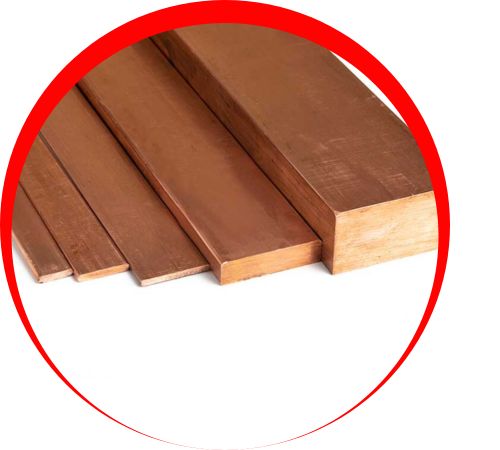

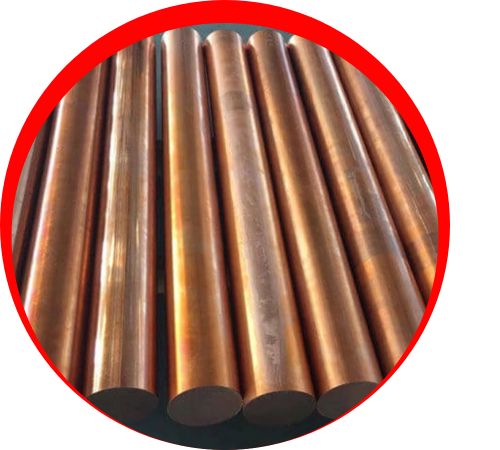

| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Copper Nickel 70/30 | 65.0 min | 1.0 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 70/30 | 0.323 lb/in3 at 68 F | 2260 °F | Psi – 50000 | Psi – 20000 | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Bars in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 70/30 Bars are widely utilized in marine engineering, especially for heat exchangers, condenser tubes, and shipbuilding parts because of their excellent resistance to seawater corrosion. They are also utilized in desalination plants, offshore oil and gas platforms, and chemical processing equipment where strength and durability are essential. These bars are also suitable for hydraulic and instrumentation systems, especially in coastal or submerged conditions. Their antimicrobial and anti-fouling properties also render them appropriate for use in naval ships and power generation facilities, guaranteeing long lifespan and minimal maintenance in corrosive environments.
