Jyoti Steels is an illustrious Tantalum Rod manufacturer and supplier based in Mumbai, India, catering to the needs of high-quality products designed for critical use with superior corrosion resistance and high-temperature stability. Focusing primarily on precision production and compliance with international standards, Jyoti Steels produces tantalum rods suitable for use in various industries including electronics, aerospace, chemical processing, and medical technology. Famed for their purity, performance, and durability, Jyoti Steels’ tantalum rods are specially designed to satisfy the stringent requirements of high-level engineering projects and demanding operating conditions.
Tantalum Rods consist mainly of ≥99.9% pure tantalum with minor elements such as Oxygen (≤0.01%), Nitrogen (≤0.01%), Hydrogen (≤0.001%), Carbon (≤0.01%), and Niobium (≤0.1%). These rods possess superior mechanical properties with tensile strength of 200–750 MPa and elongation up to 30%. Tantalum possesses a very high melting point of around 3017°C and a density of 16.65 g/cm³. It also possesses very good thermal and electrical conductivity and is very resistant to acid corrosion, especially hydrochloric and sulfuric acid, and is thus well suited for application in aggressive chemical and high-temperature conditions.
| Standard : | ASTM B365 / ASME SB365, As per ASTM B365-98 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME |
| Size : | Dia3-120mm |
| Length : | 3 meter, Size: 1/2 inch |

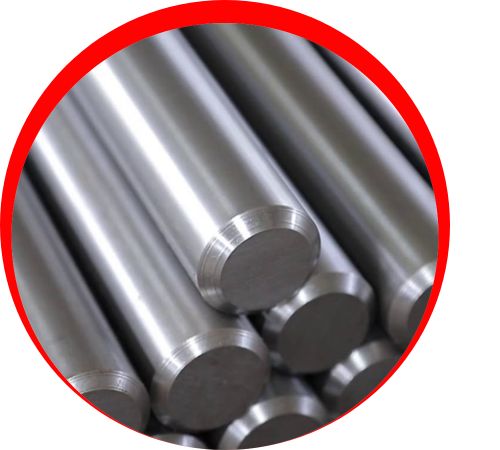

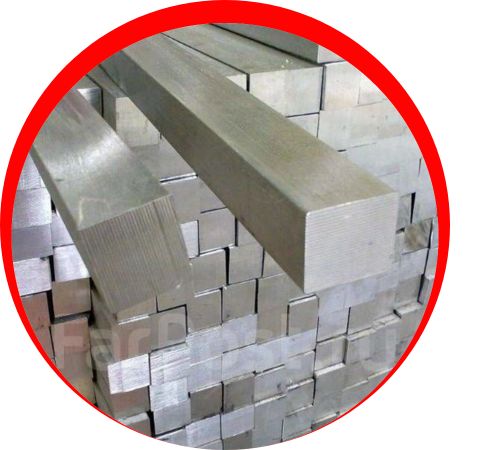

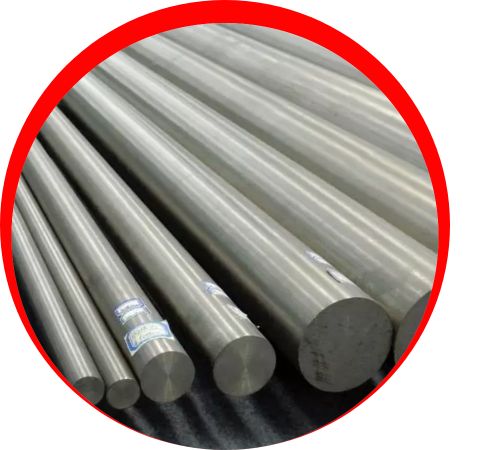

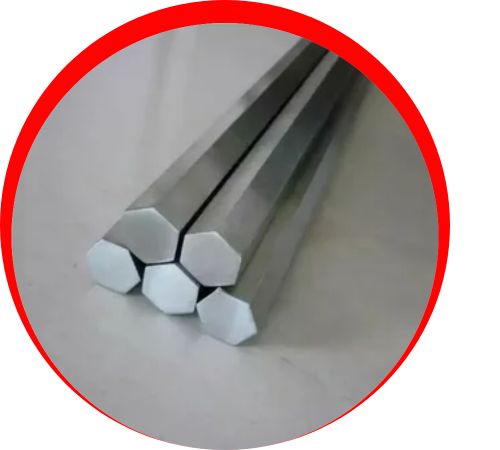

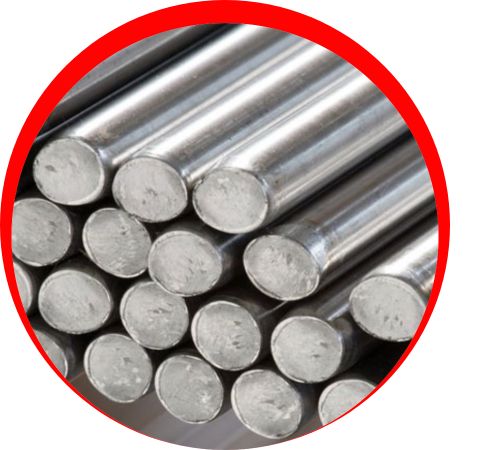

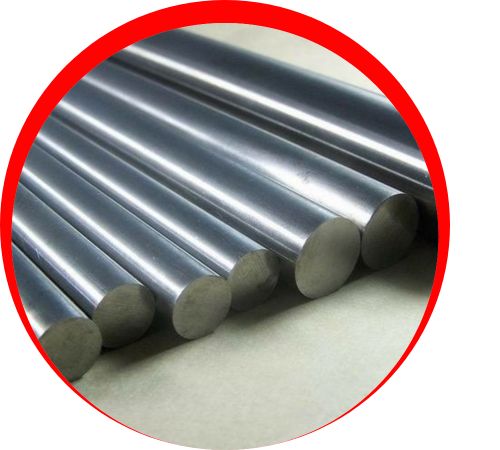

| Form: | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Finish : | Cold drawn, Bright drawn, Centreless ground, Cold finished, Peeled and turned, Smooth turned, Slit rolled edge, Hot finished, Hot rolled, Rough turned/peeled, Peeled and reeled |
| Materials Grades : | RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W), R05240 |
| Designation | Chief component | Elements maxmium % | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ta | Nb | Fe | Si | Ni | W | Mo | Ti | Nb | O | C | H | N | |
| Ta1 | Rem | 0.004 | 0.003 | 0.002 | 0.004 | 0.004 | 0.002 | 0.03 | 0.015 | 0.004 | 0.0015 | 0.002 | |
| Ta2 | Rem | 0.01 | 0.01 | 0.005 | 0.02 | 0.02 | 0.005 | 0.08 | 0.02 | 0.01 | 0.0015 | 0.01 | |
| TaNb3 | Rem | 3.5 | 0.01 | 0.01 | 0.005 | 0.02 | 0.02 | 0.005 | 0.02 | 0.01 | 0.0015 | 0.01 | |
| TaNb20 | Rem | 17.023.0 | 0.01 | 0.01 | 0.005 | 0.02 | 0.02 | 0.005 | 0.02 | 0.01 | 0.0015 | 0.01 | |
| Ta2.5W | Rem | 0.005 | 0.003 | 0.002 | 3.0 | 0.006 | 0.002 | 0.04 | 0.015 | 0.005 | 0.0015 | 0.006 | |
| Ta10W | Rem | 0.005 | 0.003 | 0.002 | 11 | 0.006 | 0.002 | 0.04 | 0.015 | 0.005 | 0.0015 | 0.006 | |
| Type | Ultimate Tensile Strength min.psi (Mpa) | Yeild Strength min.psi (Mpa) | Elongation, % (min) |
|---|---|---|---|
| R05200 / R05400 | 25,000(172) | 15,000(103) | 25 |
| R05252 | 40,000(276) | 20,000(138) | 20 |
| R05255 | 70,000(482) | 55,000(379) | 20 |
| R05240 | 35,000(241) | 15,000(103) | 25 |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Tantalum Rodin Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Tantalum Rods find extensive application in industries that require very high resistance to heat and corrosion. In the electronics industry, they find application in the production of capacitors and high-value resistors. In the chemical industry, the tantalum rods are utilized in heat exchangers, reactors, and containers used in highly corrosive chemicals. In aerospace and defense, they are used in parts subjected to extreme temperatures. They also find application in medical equipment like implants and surgical instruments because of their biocompatibility. Tantalum rods enable demanding applications where stability, durability, and reliability under harsh conditions are critical.
