Jyoti Steels is a well-known Invar 36 Bar manufacturer and supplier company located in Mumbai, India, providing top-grade materials engineered for applications involving superior dimensional stability. With a robust infrastructure and stringent quality control measures, Jyoti Steels provides uniform supply of high-precision-engineered Invar 36 Bars that conform to international standards. With their thermal expansion properties as low as a fraction, the bars are especially suitable for sophisticated industrial applications. The commitment of the company to customer satisfaction, technical capabilities, and on-time delivery positions it as a reliable partner to customers in aerospace, electronics, and instrumentation industries.
Invar 36 Bar consists mainly of Nickel (35–37%) and Iron (balance), with small amounts of Manganese (≤0.60%), Carbon (≤0.05%), Silicon (≤0.40%), and Cobalt (≤0.50%). It has a tensile strength of 490–620 MPa, yield strength of 275 MPa, and elongation of approximately 30%. Its physical characteristics are a very low coefficient of thermal expansion (1.2 x 10⁻⁶/°C), a density of 8.1 g/cm³, and a melting point of around 1430°C. These properties make it particularly well-suited to environments where dimensional accuracy is needed under changing thermal conditions.
| Standards : | ASTM F1684, ASME SF1684 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

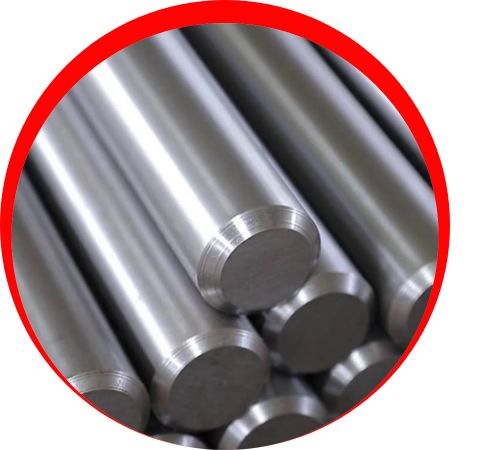

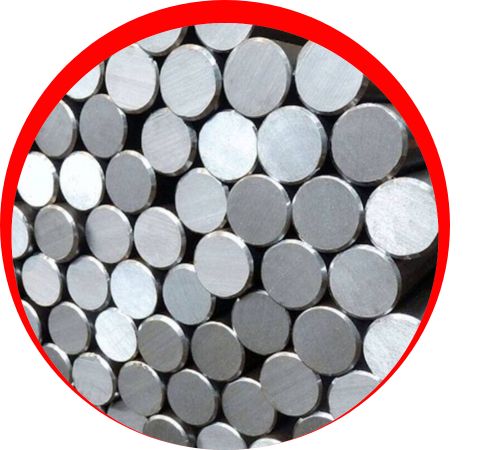

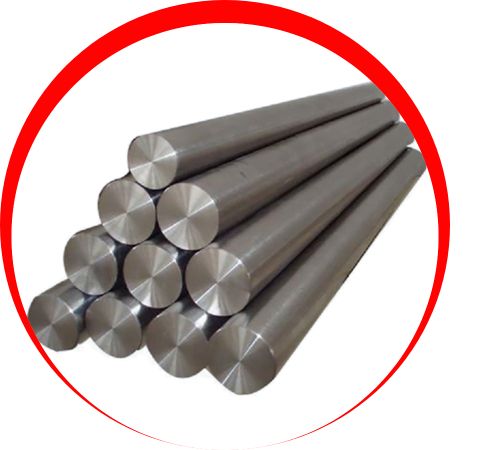

| Round bar size : | Diameter: 3-~800mm |

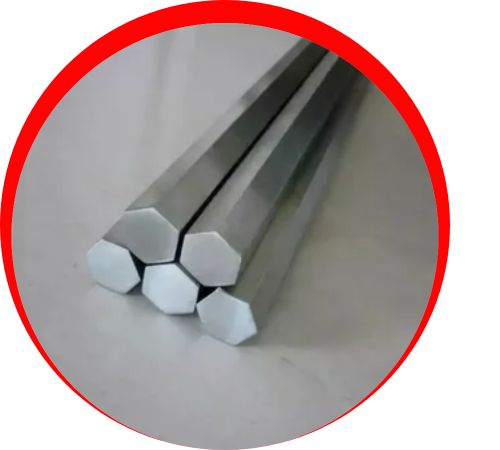

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

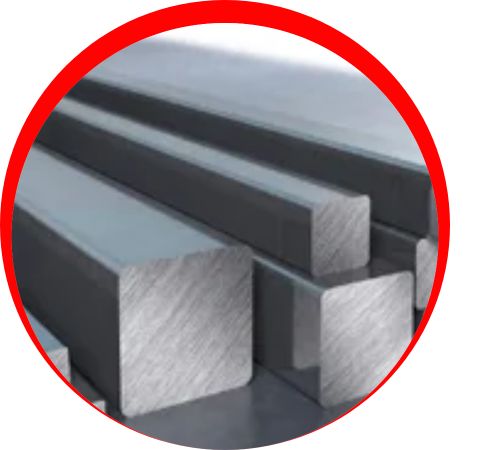

| Square bar size : | 4 to 100mm |

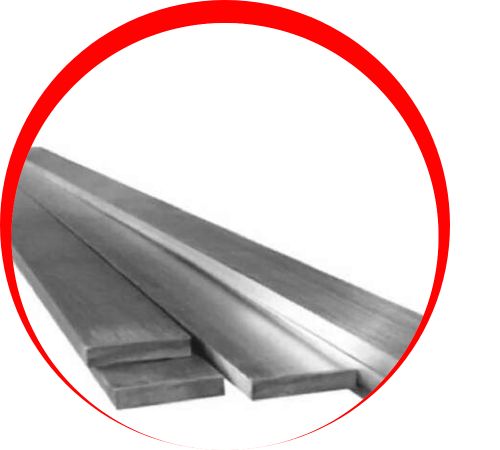

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Fe | Ni | Cr | P | Mo | Co |
| Invar 36 | 0.10 max | 0.06 max | 0.35 max | 0.025 max | Rem | 35-38 | 0.50 max | 0.025 max | 0.50 max | 1.0 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Psi – 71,000 , MPa – 490 | Psi – 35,000 , MPa – 240 | 42 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Invar 36 Bar in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Invar 36 Bar is extensively applied in industries where low thermal expansion is essential. Uses are in aerospace tooling, precision instruments, optical equipment, cryogenic engineering, and electronics production. It is commonly used in measuring instruments, satellite equipment, and composite molds in cases where dimensional stability is essential under thermal stress. The low rate of expansion in the bar also makes it suitable for applications like bimetal thermostats, laser components, and clocks. Its consistent performance under variable temperatures guarantees precision and durability in high-precision mechanical and electronic systems.
