Mumbai, India-based Jyoti Steels is a well-established producer and distributor of premium quality Haynes 188 Bars, serving crucial industrial applications that require outstanding heat and corrosion resistance. Well-established in the domestic and international markets, Jyoti Steels stands out for its provision of durable alloy bars conforming to strict international standards. Their Haynes 188 Bars are made by utilizing sophisticated techniques, which provide better mechanical properties and high-temperature resistance, thus the ideal bars for the aerospace, power generation, and chemical processing industries.
Haynes 188 Bars are cobalt-nickel-chromium-tungsten alloys with a chemical composition of roughly Cobalt 38–42%, Nickel 22–26%, Chromium 21–25%, Tungsten 13–16%, Iron up to 3%, Lanthanum 0.02–0.12%, and Carbon 0.05–0.15%. These bars possess superior mechanical properties, such as tensile strength of 895 MPa, yield strength of 485 MPa, and elongation of 35%. Physical properties are a density of 9.14 g/cm³, melting range of 1295–1380°C, and superior resistance to oxidation, thermal fatigue, and high-temperature strength, and hence can be used in harsh environments.
| Standards : | ASTM 5772, ASME S5772 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

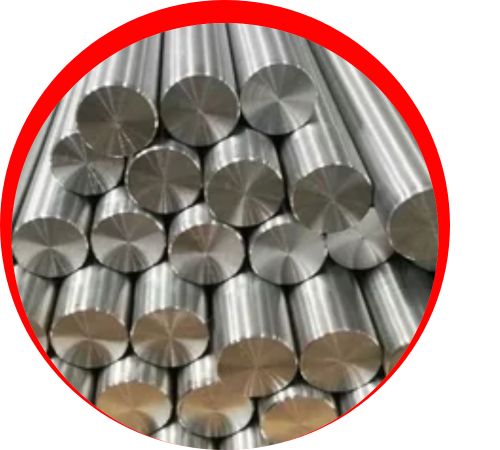

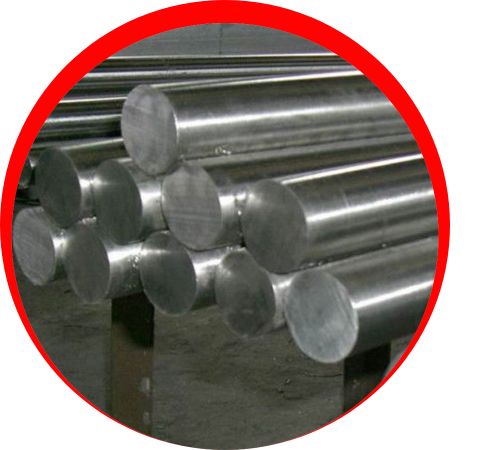

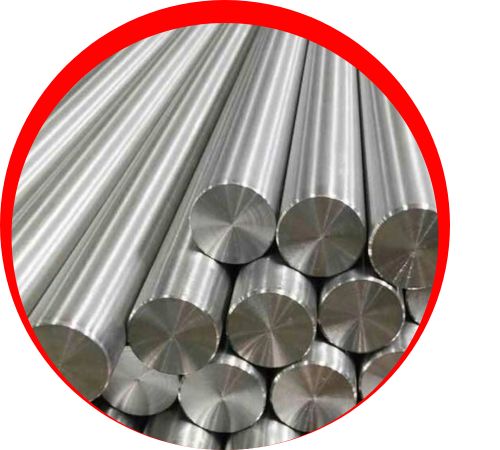

| Round bar size : | Diameter: 3-~800mm |

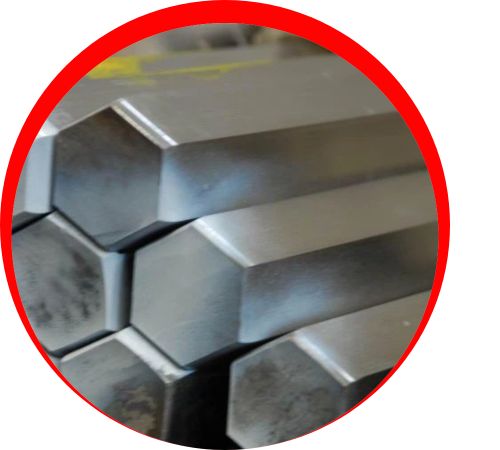

| Hex Bar size : | 2-100mm A/F |

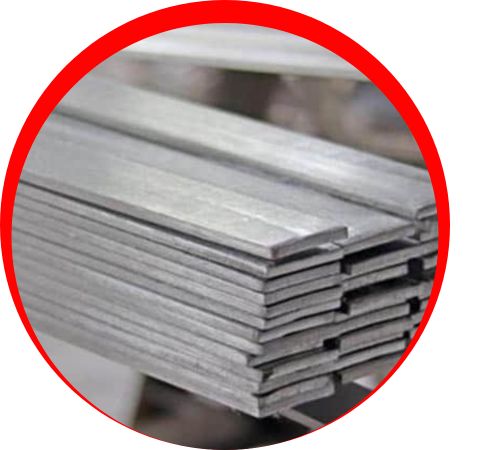

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

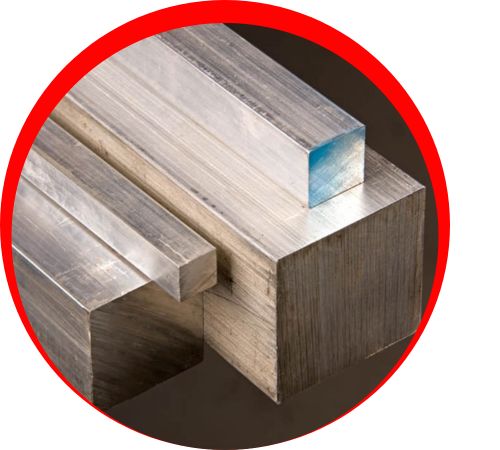

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | P | S | Si | Ni | Cr | Fe | W | B | La |
| Haynes 188 | .05 – .15 | 1.25 max | .020 max | .015 max | .20 – .50 | 20.0 – 24.0 | 21.0 -23.0 | 3.0 max | 13.0 -15.0 | .015 max | .03 – .15 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| ksi – 65 , MPa – 446 | ksi – 140 , MPa – 963 | 55 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Haynes 188 Bar in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Haynes 188 Bars are most commonly used in aerospace, gas turbines, industrial furnaces, and power generation because they can resist long exposure to high temperatures and corrosive environments. They are best suited for combustion chambers, afterburner parts, transition ducts, and heat shields. Its good oxidation and sulfidation resistance and excellent fabricability make it very effective in chemical processing equipment and heat-treating fixtures. Haynes 188 Bars offer high strength, thermal stability, and long life, which makes them a material of choice for critical parts in harsh thermal and mechanical operating conditions.
