Mumbai-based Jyoti Steels is a well-known manufacturer and supplier of Hastelloy N Pipes, supplying high-quality piping solutions designed specifically for high-temperature and corrosive environments. Renowned for its excellence orientation, Jyoti Steels offers Hastelloy N pipes that are high-precision manufactured to conform to rigorous industry norms, providing endurance and reliability. These pipes are ideal for specialized applications in nuclear and chemical industries, where resistance to molten salts and radiation damage is critical. With a focus on quality, timely delivery, and customer satisfaction, Jyoti Steels serves both national and international markets effectively.
Hastelloy N Pipes are mainly made of Nickel (71–74%), Molybdenum (16–18%), Iron (4–6%), Chromium (6–8%), and trace substances such as Silicon (0.2–1%), Carbon (max 0.05%), and Manganese (max 0.5%). The alloy has remarkable mechanical properties with a tensile strength of about 690 MPa, yield strength of about 275 MPa, and elongation of about 35%. Physical properties are a density of 9.2 g/cm³ and melting range of 1330°C to 1355°C. Hastelloy N has excellent resistance to high-temperature oxidation, fluoride salt corrosion, and radiation-induced embrittlement, and it is well suited for harsh operating conditions.
| Standards : | ASTM B573, ASME SB573 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | Cu | Ni | Cr | Mo | W | Fe |
| Hastelloy N | 0.06 max | 0.8 max | 1.00 max | ≤ 0.35 | 71 Balance | 6.0 – 8.0 | 15.0 – 18.0 | ≤ 0.50 | ≤ 5 |
| Tensile Strength | Modulus of elasticity (@14°C) | Elongation |
| Psi – 800 , MPa –116000 | Psi – 219 , Ksi – 31800 | 39.3 % |

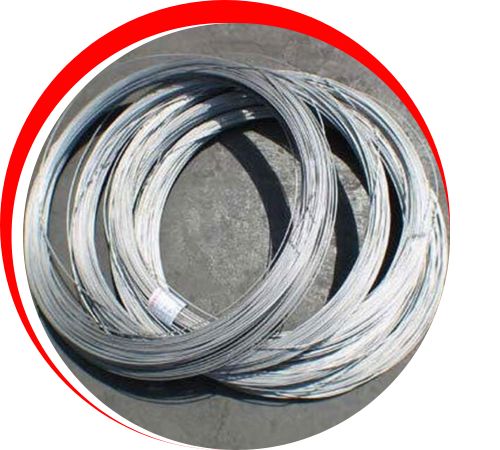

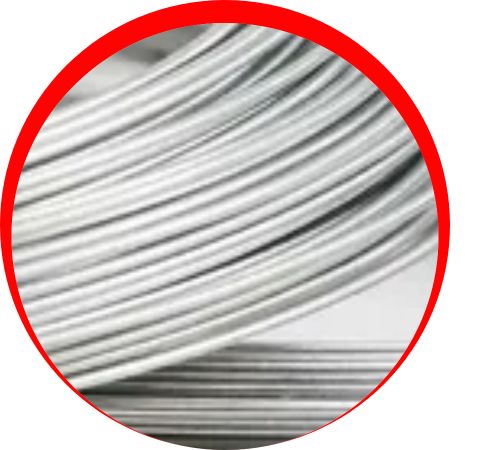

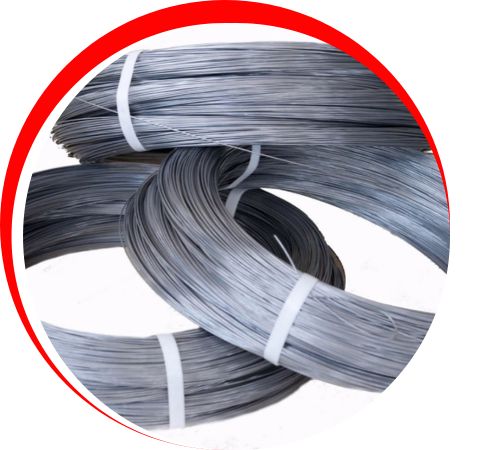

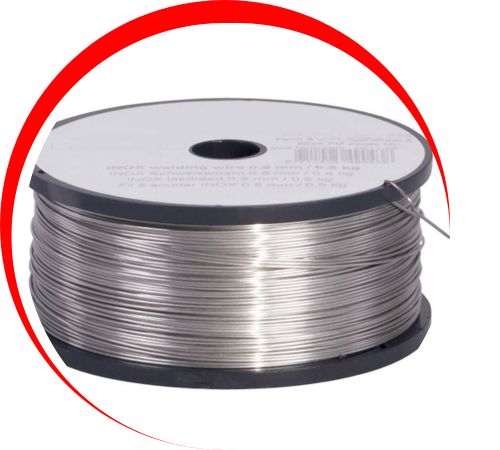

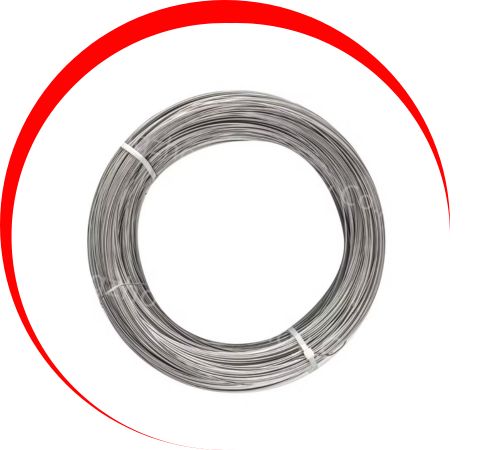

At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Hastelloy N Wire in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Hastelloy N Pipes are extensively employed in the nuclear sector, especially in molten salt reactors and fuel processing loops because of their resistance to fluoride salt corrosion and radiation damage. They are also applied in chemical processing facilities, aerospace hardware, and heat exchangers where high-temperature stability and corrosion resistance are necessary. The pipes can be used to handle molten fluoride salts, nitric acid, and other hostile media. Their corrosion resistance, stability, and strength make them a necessity for long-term usage in harsh conditions.
