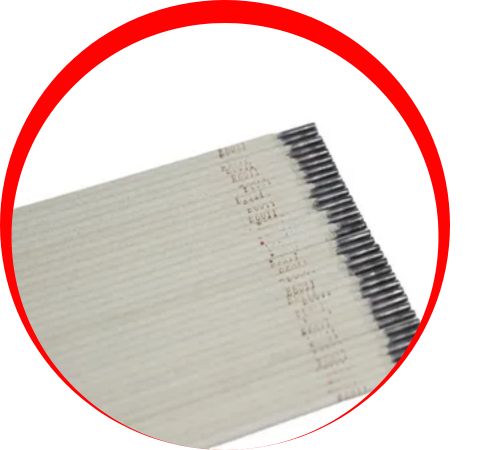

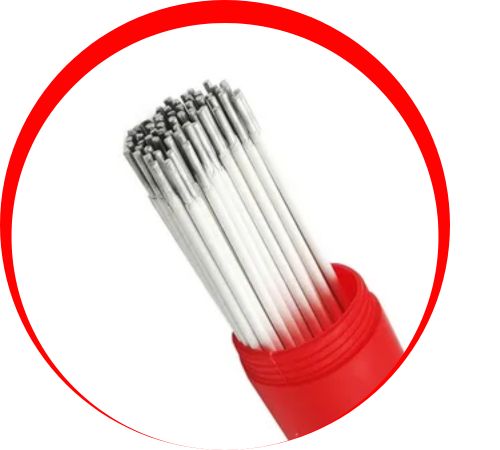

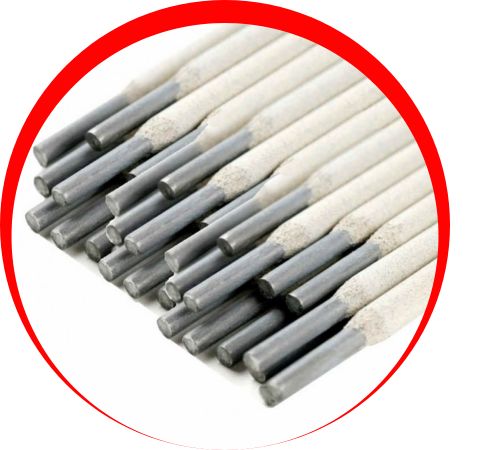

Mumbai, India-based Jyoti Steels is a renowned producer and distributor of AWS Class ENiCrMo-3 Coated Electrodes. The high-quality welding electrodes are made for welding and overlaying nickel-chromium-molybdenum alloys, including Inconel 625, that operate in extremely corrosive and high-temperature applications. With outstanding arc stability and metallurgical soundness, Jyoti Steels’ ENiCrMo-3 electrodes are well-suited for severe service applications in the chemical, offshore, and power generation industries. Our dedication to quality and accuracy provides reliable, code-acceptable welds for severe structural and repair applications.
AWS Class ENiCrMo-3 Electrodes with Coatings typically have 58–63% Nickel (Ni), 20–23% Chromium (Cr), 8–10% Molybdenum (Mo), 3–4% Niobium + Tantalum (Nb+Ta), and not more than 5% Iron (Fe). Trace elements are Manganese (≤1%), Silicon (≤0.5%), and Carbon (≤0.05%). These electrodes have good tensile strength (approximately 760–850 MPa), yield strength of about 550 MPa, and elongation of 25–35%. They are of about 8.44 g/cm³ density and with a melting point over 1300°C. ENiCrMo-3 performs well under conditions that may lead to pitting, stress corrosion cracking, and oxidation, and thus finds application in cryogenic as well as high-temperature service.
| Classification | AWS A5.11, A5.1, ENiCrMo-3 |
| Form | Welding Electrode, Welding Rods |
| Type Of Current | Direct Current Electrode Positive (DCEP) |
| Diameters | 3/32”, 1/8”, 5/32”, 3/16” or 2.5mm, Ø 3.2mm, Ø 4.0mm, Ø 5.0mm |
| Size | 2.0mm ∞ 5.0mm |
| AC/DC+ | 50-80, 80-110, 100-135, 140-180 |
| Welding Positions | All positions 5/32” & 3/16” recommended for use in flat & horizontal positions only (F, V, OH, H) |
| AWS ENiCrMo-3 Coated Electrodes Application & uses |
|
| C | Mn | Fe | P | S | Si | Cu | Ni | Al | Ti | Cr | Nb+Ta | Mo | Other |
| 0.1 | 0.5 | 5.0 | 0.02 | 0.015 | 0.5 | 0.5 | 58 | 0.4 | 0.4 | 20.0-23.0 | 3.15-4.15 | 8.0-10.0 | 0.5 |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ENiCrMo-3 Coated Electrodes in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
AWS Class ENiCrMo-3 Coated Electrodes find broad application in the welding of Inconel 625 and comparable high-performance nickel alloys in harsh service conditions. These electrodes are used in pressure vessels, heat exchangers, chemical reactors, offshore platforms, and flue gas desulfurization plants. They are appropriate for fabrication and repair work in the aerospace, nuclear, marine, and petrochemical sectors. Their chloride, acid media, and thermal cycling resistance makes them ideal for components operating in harsh corrosive environments. ENiCrMo-3 finds application in joining dissimilar metals as well as overlaying surfaces of carbon steels to provide corrosion resistance.
