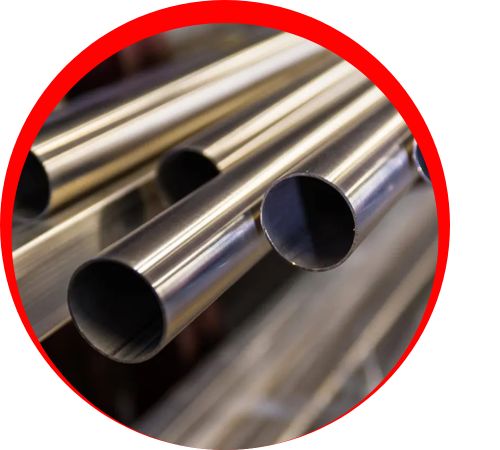

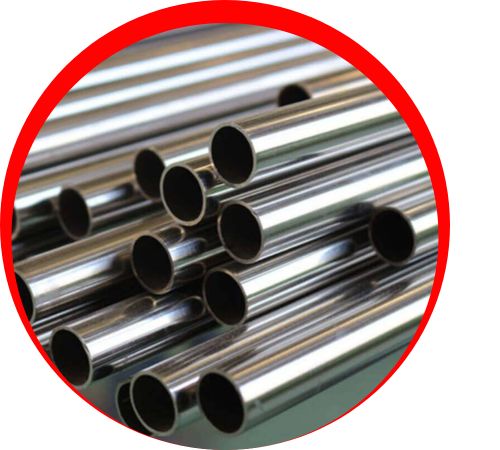

Jyoti Steels is a well-known manufacturer and supplier of Nickel Alloy Pipes headquartered in Mumbai, India, with high-performance piping solutions designed for tough industrial settings. Popular for their impressive heat, corrosion, and pressure resistance, Nickel Alloy Pipes are suitable for conveying aggressive chemicals and gases. Jyoti Steels offers these pipes in different grades, diameters, and specifications as per client requirements. By abiding strictly to international standards, with a solid quality control mechanism, and delivery in time, the company provides solutions to industries like chemical processing, power generation, marine, and petrochemicals.
Nickel Alloy Pipes are chiefly composed of Nickel (ranging from up to 99.0% based on grade), along with trace levels of Iron (0.4%), Copper (0.25%), Manganese (0.35%), Silicon (0.35%), Carbon (up to 0.15% in the case of Nickel 200 and 0.02% for Nickel 201), and Sulfur (0.01%). The pipes possess outstanding resistance to corrosion in acidic as well as alkaline environments. They have a tensile strength of 403 MPa (Nickel 201) to 462 MPa (Nickel 200), yield strength of 103–148 MPa, and elongation of 45%. Physical properties are a density of 8.89 g/cm³ and a melting point of 1435–1446°C, with better thermal and electrical conductivity.
| Dimensions | : | ASTM, ASME and API |
|---|---|---|
| Standard | : | ASTM A161, ASME SB161 |
| Size | : | 4 to 219mm W. T.: 0.5 to 20mm |
| Specialized In | : | Large Diameter Size |
| Grade | : | Nickel Alloy 200 (UNS No. N02200) |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Form | : | Round, Hydraulic Etc |
| Type | : | Seamless / Fabricated |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Threaded |
| Cu | Ni | Fe | Mn | C | S | Si |
| 0.25 max | 99.0 min | 0.4 max | 0.35 max | 0.15 max | 0.01 max | 0.1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.89 g/cm3 | 1370 °C (2550 °F) | Psi – 1,15,000 , MPa –790 | Psi – 52,000 , MPa – 355 | 40 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Nickel Alloy Pipes in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nickel Alloy Pipes find extensive use in industries where high corrosion resistance and heat stability are needed. They are used in heat exchangers, piping systems, and reactors in the chemical processing industry for caustic and acidic solution handling. In marine environments, they withstand corrosion from saltwater, which makes them suitable for ballast systems and seawater cooling. Power plants use them in boilers, condensers, and superheaters. Electronics industries use them for their high conductivity in battery systems and components. They are also applied in the aerospace, pharmaceutical, and food industries to provide secure, reliable performance in severe and high-purity environments.
