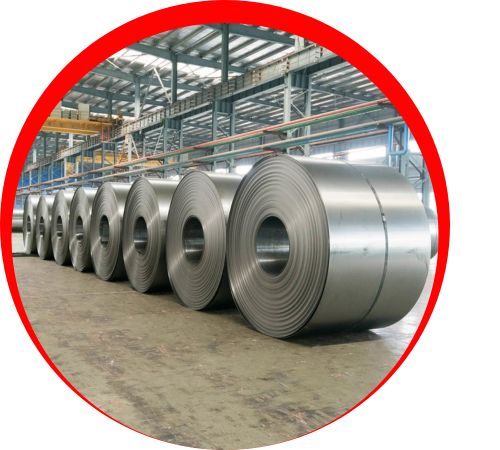

Mumbai, India-based Jyoti Steels is a leading producer and supplier of high-quality Monel 400 Coils with superior corrosion resistance and high mechanical strength. Specifically engineered to serve rigorous industrial needs, these coils find extensive application in marine engineering, chemical processing, oil & gas, and power generation industries. Jyoti Steels confirms every product is of international quality standards, and the Monel 400 coils supplied by us work efficiently even in extreme conditions such as high salinity, acidic conditions, and varying temperatures.
Monel 400 Coils are essentially made up of Nickel (Ni) 63–70% and Copper (Cu) 28–34%, with small additions of Iron (Fe) up to 2.5%), Manganese (Mn) ≤2%), Silicon (Si) ≤0.5%), and Carbon (C) ≤0.3%). These coils have tensile strength of 480–620 MPa, yield strength of about 170 MPa, and elongation of 30–40%. Density is around 8.8 g/cm³, and the melting point is between 1300°C and 1350°C. Monel 400 exhibits superior resistance to caustic solutions, hydrofluoric acid, and seawater, and hence is suitable for corrosive and high-performance applications.
Monel 400 Coils Specifications | ||
| Specifications | ASTM / ASME SB 127 | |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm | |
| Thickness | 0.1mm to 12 mm Thk | |

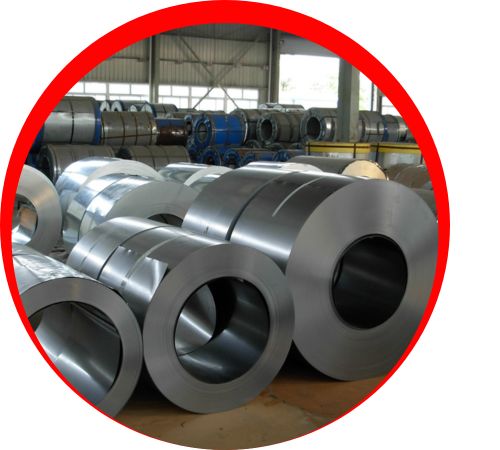

| Form | Coils, Foils, Rolls, Plain Coil, Shim Coil, Strip, Flats, Blank (Circle), Ring (Flange) | |

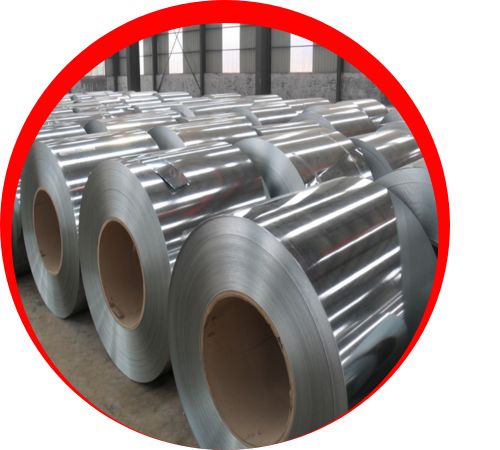

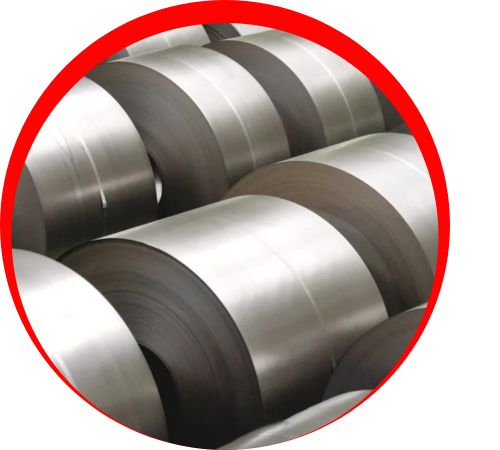

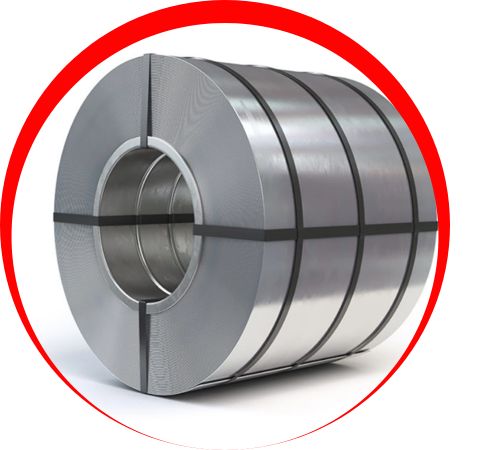

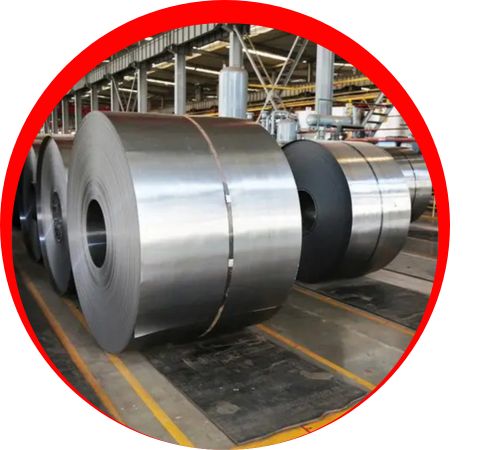

| Finish | Hot rolled Coil (HR), Cold rolled Coil (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. | |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Monel 400 Coils in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel 400 Coils find widespread application in areas where corrosion resistance, particularly against seawater and chemicals, is a must. In the shipbuilding industry, they are applied in ship construction, seawater cooling systems, and pump parts. In chemical processing, Monel coils find excellent application in storage tanks, reaction vessels, and heat exchangers for corrosive liquids. Oil and gas industries employ them in offshore platforms, pipelines, and instrumentation. In addition, they are applied in aerospace, electrical devices, and power plants owing to their resistance to atmospheric corrosion, strength, and thermal stability.
