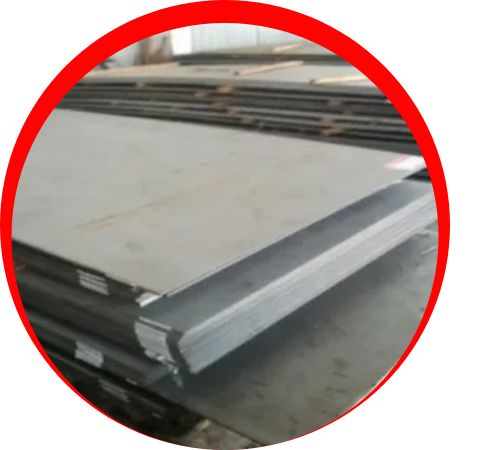

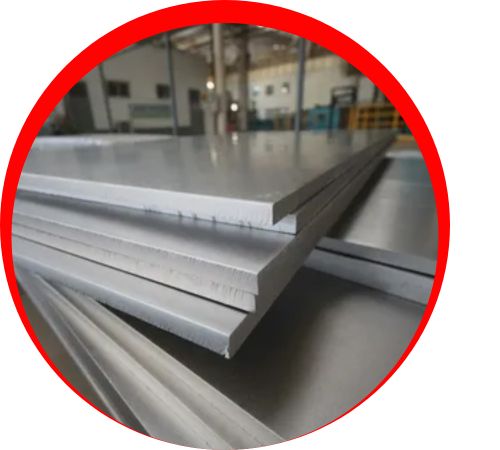

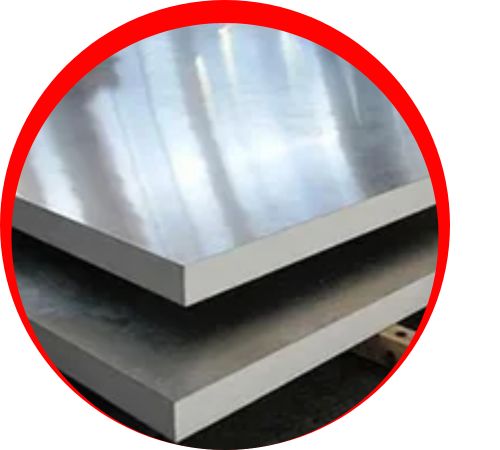

Jyoti Steels is one of the well-known manufacturers and suppliers of Monel 400 Sheet and Plates from Mumbai, India. Following its dedication towards the supply of higher quality nickel-copper alloy products, Jyoti Steels has forged a strong niche position in local and international markets. Jyoti Steels provides Monel 400 Sheets and Plates compliant with international quality standards and featuring outstanding corrosion resistance, strength, and durability. With state-of-the-art manufacturing facilities and a professional workforce, Jyoti Steels provides accuracy, reliability, and timely supply to different industries.
Monel 400 Sheets and Plates contain mostly Nickel (63% min) and Copper (28–34%), along with minor elements such as Iron (2.5%), Manganese (2%), Silicon (0.5%), and Carbon (0.3%). They possess excellent mechanical properties, such as tensile strength of 550 MPa, yield strength of 170 MPa, and elongation of 30%. Physically, it has a density of 8.80 g/cm³ and a melting range of 1300–1350°C. These properties confer superior corrosion resistance, toughness, and thermal conductivity, making Monel 400 suitable for use in aggressive and high-stress applications.
| Specifications | ASTM / ASME SB 127 |
|---|---|
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Monel 400 Sheet and Plates in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel 400 Sheet and Plate are widely utilized in industries with a need for superior corrosion resistance and strength, including marine engineering, chemical processing, and exploration of oil and gas. They are well-suited for seawater applications, heat exchangers, storage tanks, pump components, and structural parts in severe conditions. Furthermore, they find applications in power generation plants, pharmaceutical equipment, and aerospace components. They are a suitable choice for high-pressure, corrosive chemical, and temperature-fluctuating conditions, making them a trusted choice for severe industrial and structural uses.
