Jyoti Steels is a reliable Monel K500 Bars manufacturer and supplier in Mumbai, India, renowned for producing high-quality bars that provide top-notch strength along with corrosion resistance in harsh environments. With precise engineering and devotion to international norms, Jyoti Steels caters to industries such as marine, aerospace, oil & gas, and chemical processing. Their Monel K500 Bars find applications in critical industries where performance, reliability, and durability are imperative, providing long-term solutions for domestic and foreign customers alike.
Monel K500 Bars consist mainly of Nickel (63–70%) and Copper (27–33%), with Aluminum (2.3–3.15%) and Titanium (0.35–0.85%) added for age hardening. They further include Iron (≤2.0%) and Manganese (≤1.5%). These components impart Monel K500 Bars superior mechanical properties such as tensile strength of up to 965 MPa, yield strength of approximately 690 MPa, and elongation of 20%. The density of the bars is 8.44 g/cm³, and melting point is 1315–1350°C. The composition imparts superior corrosion resistance, fatigue strength, and mechanical stability under aggressive environments.
|

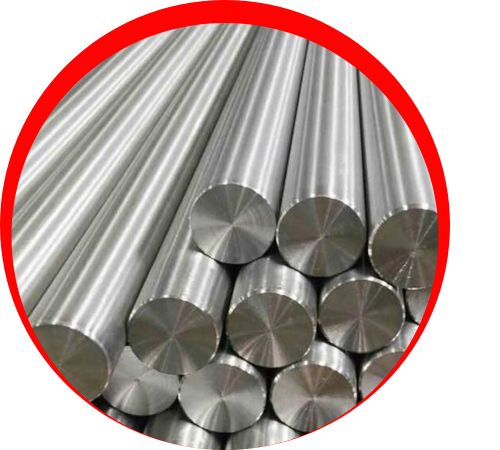

Monel K500 Round Bar Specifications |
||
| Specifications | : | ASTM B865 / ASTM SB865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | : | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min | 0.010 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15000 , MPa – 790 | 20% |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Monel k500 Bars in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel K500 Bars find extensive application in industries where strength and corrosion resistance are a must. In the marine sector, they find application in seawater systems, boat shafts, and offshore platforms. The oil and gas industry depends on these bars for drilling equipment, subsea systems, and pipelines. In aerospace, they find application in aircraft components, springs, and safety wiring. Monel K500 Bars are utilized in the chemical processing industry in reactors, valves, and heat exchangers. They are also used in power generation and nuclear applications due to their capacity to resist high pressure and temperature.
