Jyoti Steels is a prominent manufacturer and supplier of Inconel 600 Fasteners from Mumbai, India, that provides high-quality fastening solutions to numerous industries. Renowned for precision engineering and superior-grade material, Jyoti Steels makes fasteners with superior heat, corrosion, and oxidation resistance. With sophisticated manufacturing facilities and keen emphasis on quality control, the company serves different industries in India and worldwide. Jyoti Steels is relied upon for reliable, long-lasting, and high-performance fasteners customized to satisfy the strict requirements of crucial applications.
Inconel 600 Fasteners contain predominantly Nickel (72.0%), Chromium (14.0–17.0%), and Iron (6.0–10.0%), supplemented with minor elements such as Manganese (≤1%), Carbon (≤0.15%), and Silicon (≤0.5%). These fasteners have high mechanical strength with a tensile strength of around 655 MPa, yield strength of about 310 MPa, and elongation up to 45%. Physical wise, Inconel 600 has a melting point between 1354°C and 1413°C as well as a density of 8.47 g/cm³. It also possesses very good thermal as well as electrical conductivity, thus making them perfect for corrosive as well as high-temperature environments.
| Specifications | ASTM B 166 ASME SB 166 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 mm to 200 mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |

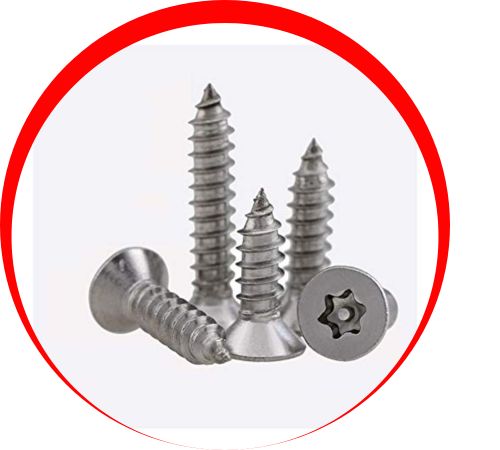

| Screw Type | Inconel 600 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. |

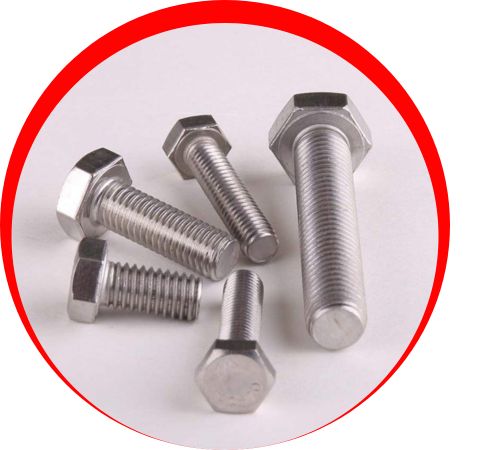

| Bolts Types | Inconel 600 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc. |

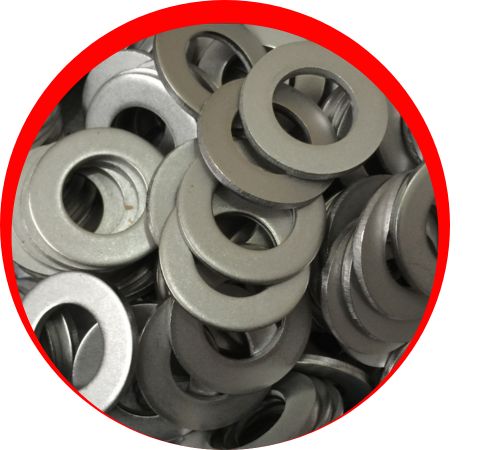

| Washer Types | Inconel 600 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc. |

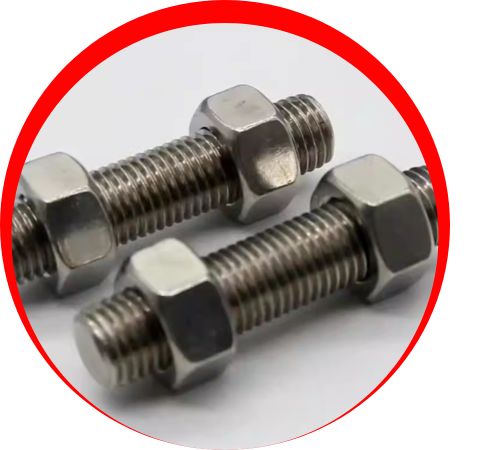

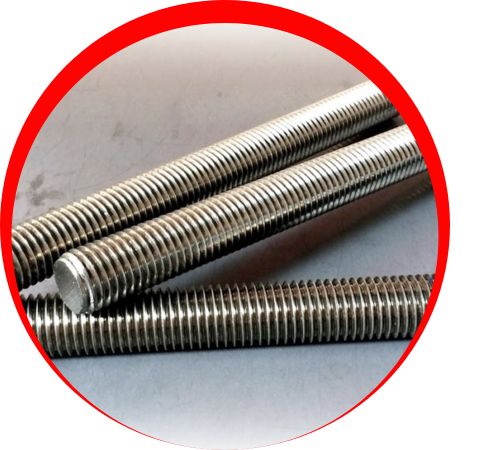

| Studs Types | Inconel 600 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc. |

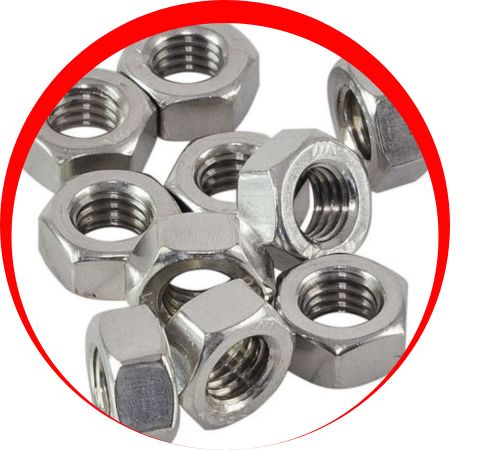

| Nut Types | Inconel 600 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc. |
| Element | Content (%) |
| Nickel, Ni | 72.0 min |
| Silicon, Si | .50 max |
| Carbon, C | .15 max |
| Sulphur, S | .015 max |
| Copper, Cu | .50 max |
| Iron, Fe | 6.0-10.0 |
| Manganese, Mn | 1.00 max |
| Density | 8.47 g/cm3 |
|---|---|
| Melting Point | 1413 °C (2580 °F) |
| Tensile Strength | Psi – 95,000 , MPa – 655 |
| Yield Strength (0.2%Offset) | Psi – 45,000 , MPa – 310 |
| Elongation | 40 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Fasteners in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 Fasteners find wide usage in those industries where corrosion as well as heat resistance is crucial, including chemical processing, nuclear energy, aerospace, marine, as well as thermal processing. They are best suited to hold components in heat exchangers, pressure vessels, furnace equipment, and nuclear reactors. Their thermal cycling and chemical resistance make them suitable for steam lines, flue gas scrubbers, and offshore environments. They provide long service life and mechanical stability in harsh environments, and hence they are a popular choice for critical infrastructure and equipment.
