Jyoti Steels, based in Mumbai, India, is a reliable manufacturer and supplier of high-quality Monel 400 Wire, renowned for its high strength and corrosion resistance in harsh environments. Committed to the highest level of quality, accuracy, and global standards, Jyoti Steels supplies multiple industries such as marine, chemical processing, oil & gas, and aerospace. Jyoti Steels Monel 400 wire provides superior performance in acidic as well as alkaline environments, making it the first choice where high durability, conductivity, and corrosive elements resistance is needed.
Monel 400 Wire consists of Nickel (Ni) 63–70%, Copper (Cu) 28–34%), with minute amounts of Iron (Fe) up to 2.5%), Manganese (Mn) ≤2%), Silicon (Si) ≤0.5%), and Carbon (C) ≤0.3%). It provides tensile strength of 480–620 MPa, yield strength about 170 MPa, and elongation of 30–40%, providing superior flexibility and strength. Its density is 8.8 g/cm³, and it melts between 1300–1350°C. The wire is highly resistant to corrosion in saltwater, acids, and caustic solutions and is thus suitable for rigorous industrial and electrical uses.
| Specifications | : | ASTM B164 ASME SB164 |
| Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | : | 100 mm TO 6000 mm |
| Diameter | : | 10 mm To 100 mm |

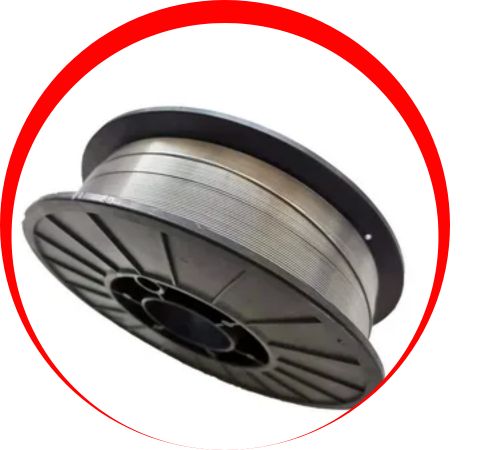

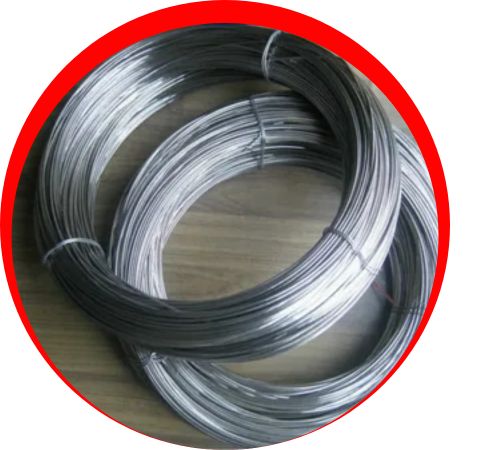

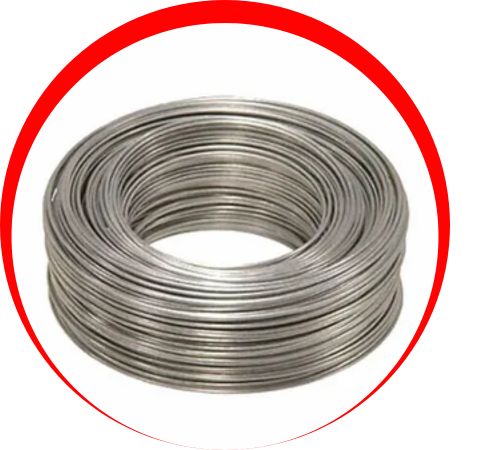

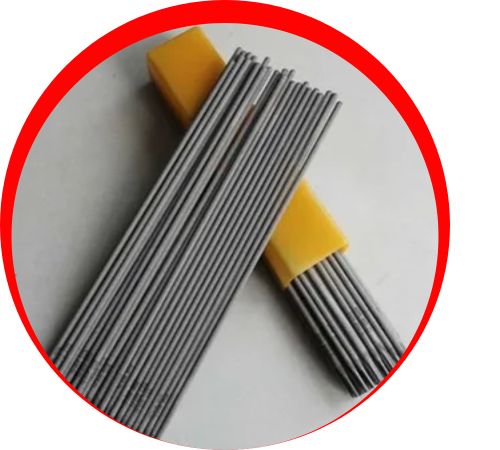

| Specialize | : | Filler Wire, Coil Wire, Electrode Wire, Welding Wire. |
| Grade | C | Mn | Si | Cu | S | Cr | Fe | Ni | N |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.0-34.0 | 0.24max | – | 2.50 max | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40% |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Monel 400 Wire in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel 400 Wire is used in various industries for its unparalleled corrosion resistance and mechanical stability. Within the marine industry, it is employed in rigging, netting, and underwater cabling because of its seawater resistance. Chemical plants employ it in heating components, filtration, and acid-resistant baskets. Within aerospace and military, it is employed in high-temperature wiring and reinforcement structures. It is applied in oil and gas industries in wire mesh, gaskets, and sealing purposes. Moreover, Monel 400 wire is also preferred in electrical engineering due to its high conductivity and in medical and food-grade equipment due to its non-reactive and hygienic nature.
