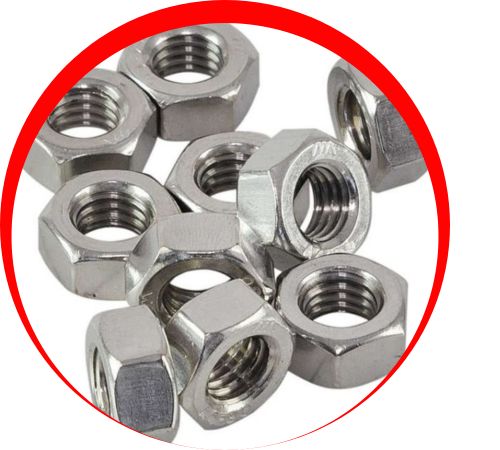

Jyoti Steels is a well-established manufacturer and exporter of Inconel 601 Nuts, located in Mumbai, India. They provide world-class fasteners for challenging industrial uses. Fabricated from super-performance nickel-chromium alloy, Inconel 601 nuts are made for withstanding heat, thermal fatigue, and chemically corrosive conditions. Products from Jyoti Steels meet international specifications, providing performance, durability, and dimensional quality. These nuts have extensive applications in fields like aerospace, power generation, chemical processing, and thermal treatment. With an unwavering focus towards quality and customer satisfaction, Jyoti Steels exports to domestic as well as international markets effectively.
Inconel 601 Nuts contain 58–63% Nickel, 21–25% Chromium, and a maximum of 14% Iron. Other elements are Aluminum (1.0–1.7%), Manganese (≤1%), Carbon (≤0.10%), Silicon (≤0.5%), Copper (≤1%), and Sulfur (≤0.015%). These nuts have a tensile strength of about 600 MPa, yield strength of 240 MPa, and elongation of about 30%. They possess a density of 8.11 g/cm³ and a melting range of 1360°C to 1411°C. Inconel 601 nuts offer excellent resistance to oxidation, thermal fatigue, and corrosive environments, rendering them suitable for application in high-stress, high-temperature settings.
| Standard | : | ASTM F467 / F468 / B446, ASME SF467 / SF468 / SB446, F2281 |
| Dimension | : | ASTM,DIN, BS,GB, IS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Nut Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Heat Treatment | : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |

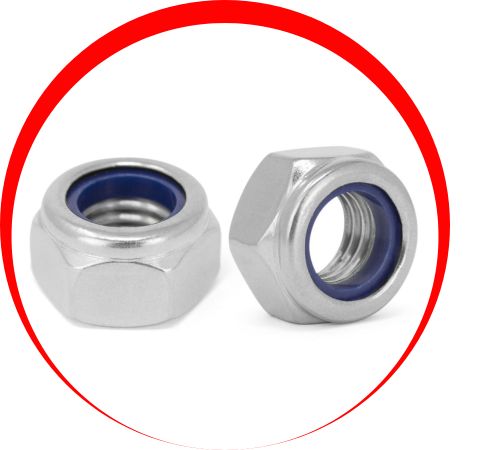

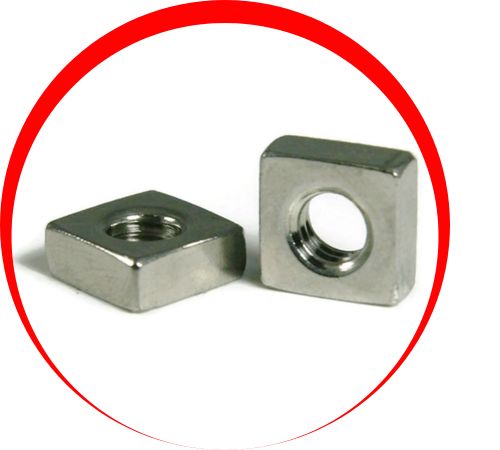

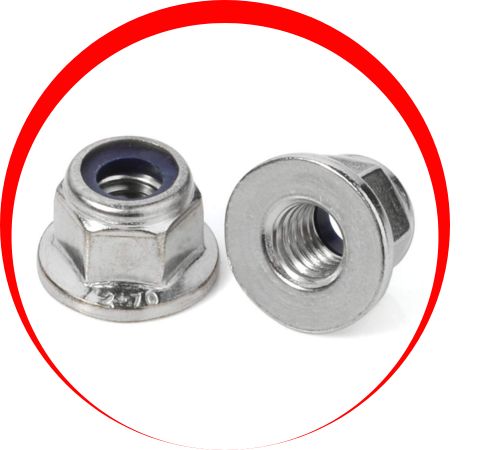

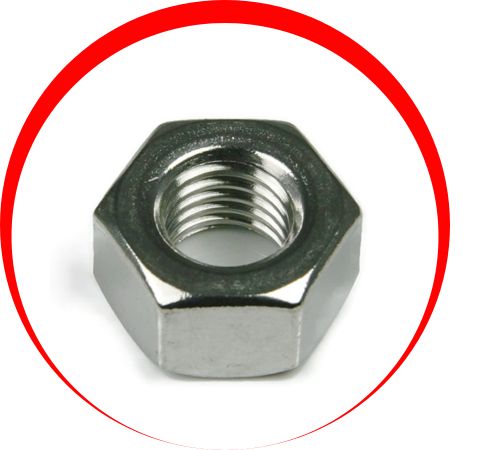

| Type | : | Hex Nut, Heavy Hex Nut, Lock Nut, Nylock Nut, Weld Nut, Dome Nut, Flange Nut, Square Nut, Eye Nut etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 601 Nuts in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 601 Nuts find extensive application in heat, corrosion, and mechanical stress-resistant applications. In the aerospace industry, they are applied in engine components and high-temperature exhaust systems. In power generation, they are used to hold parts in turbines, heat exchangers, and boilers. Chemical and petrochemical plants utilize them in piping systems, reactors, and high-pressure vessels handling aggressive chemicals and oxidizing agents. They are also used in industrial furnaces, kilns, and heat-treatment equipment for their ability to maintain structural integrity at high temperatures. Marine and offshore locations benefit from their corrosion resistance in salt-laden, humid environments, ensuring long service life.
