Jyoti Steels of Mumbai, India, is one of the major manufacturers and suppliers of Inconel 600 Forged Fittings with the reputation for producing high-quality fittings to fulfill varying industrial demands. With an overarching focus on accuracy, durability, and customer satisfaction, Jyoti Steels offers fittings engineered to operate at extreme temperatures and corrosive conditions. Their Inconel 600 Forged Fittings are generally well-trusted by industries like chemical processing, aerospace, and marine engineering due to their superior strength and durability in hostile environments, making Jyoti Steels a go-to partner for critical infrastructure developments.
Inconel 600 Forged Fittings consist of Nickel (72.0% min), Chromium (14.0–17.0%), and Iron (6.0–10.0%), along with tiny traces of Carbon (≤0.15%), Manganese (≤1.0%), Sulfur (≤0.015%), Silicon (≤0.5%), and Copper (≤0.5%). These fittings have a tensile strength of about 655 MPa, yield strength of about 310 MPa, and elongation of 40%. They are physically characterized by a density of 8.47 g/cm³ and a melting point of between 1354–1413°C. The combination of the chemical and mechanical properties of the alloy provides high resistance to oxidation, corrosion, and stress cracking at elevated temperatures.
| Standards | ASTM, ASME |
| Designation | B564, SB564 |
| Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Grade | Inconel 600 Forged Fittings. |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |

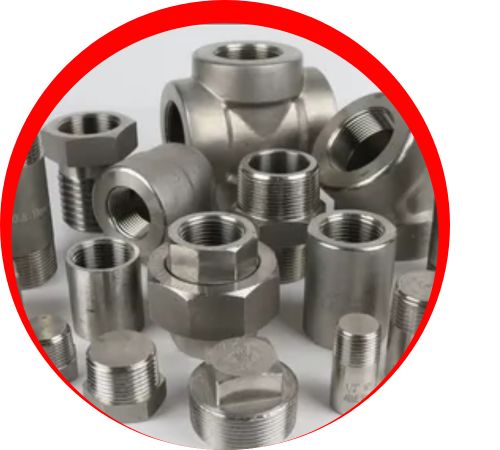

| Types of Forged Fittings | Elbow, Tee, Union, Cross, Swage Nipples, Coupling, CAP, Plug, Bush. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Forged Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 Forged Fittings have found extensive applications in industries demanding resistance to heat and corrosion. In the chemical process industry, they are suited for the handling of caustic and acidic conditions. In power generation, they find applications in heat exchangers, steam generators, and nuclear reactors. In the aerospace industry, they are applied in engine parts and exhaust systems because of their high-temperature strength. Marine industries also find them useful in saltwater conditions. Moreover, they are utilized in food processing, pulp and paper, and furnace parts, providing reliability and longevity in harsh industrial environments.
