Mumbai, India-based Jyoti Steels is a reliable supplier and manufacturer of Inconel 718 Forged Fittings, offering higher quality products aimed at high-performance industrial use. Jyoti Steels is renowned for their reliability and precision, and through their fittings, they offer capabilities to resist very high temperatures, pressure, and corrosive substances. Their Inconel 718 Forged Fittings have extensive applications across industries like aerospace, power plants, petrochemicals, and marine. Dedicated to quality control and on-time deliveries, Jyoti Steels provides uninterrupted performance and customer satisfaction with each product delivered to domestic and overseas markets.
Inconel 718 Forged Fittings consist of Nickel (50–55%), Chromium (17–21%), Iron (balance), Niobium + Tantalum (4.75–5.5%), Molybdenum (2.8–3.3%), Titanium (0.65–1.15%), Aluminum (0.2–0.8%), with minor amounts of Manganese (≤0.35%), Silicon (≤0.35%), and Carbon (≤0.08%), Sulfur (≤0.015%), and Cobalt (≤1.0%). These fittings provide a tensile strength of approximately 1240 MPa, yield strength of 1030 MPa, and elongation of around 12–20%. They possess a density of 8.19 g/cm³ and melting point of 1260–1336°C. Their superior strength, corrosion resistance, and thermal stability make them perfect for challenging applications in high-stress environments.
Specifications : ASTM B564 / ASME SB564
Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB (Socketweld & Screwed-Threaded)

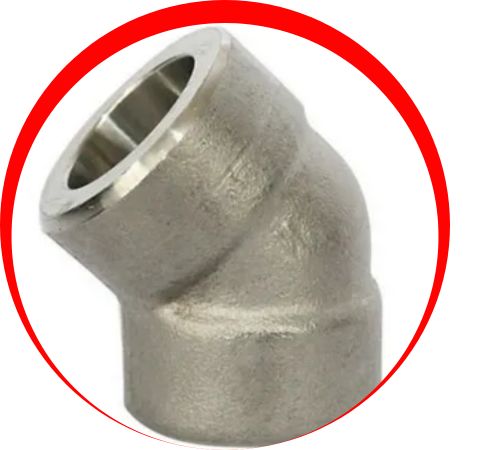

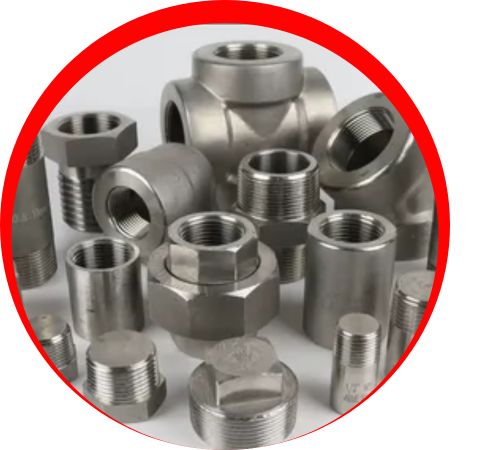

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Mn | Si | P | S | Cr | Cu | Ni | Fe |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | – | 0.015 max | 17 – 21 | 0.30 max | 50.0-55.0 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.2 g/cm3 | 1350 °C (2460 °F) | Psi –1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 718 Forged Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 718 Forged Fittings find wide applications in industries that require high strength and corrosion resistance in extreme conditions. In aerospace, they are crucial for jet engines, turbine blades, and exhaust systems. Power generation plants utilize them in heat exchangers, steam generators, and nuclear reactors. The oil and gas sector employs them in high-temperature and high-pressure pipelines and valves. Chemical processing units take advantage of their resistance to acidic and oxidizing conditions. They are employed in marine engineering and automobiles in performance-critical parts. Their reliability and long life make them the choice in crucial infrastructure.
