Jyoti Steels is one of the prominent Inconel 600 Wire manufacturers and suppliers in Mumbai, India, providing high-performance wire products for mission-critical industrial uses. Inconel 600 is a nickel-chromium alloy that boasts superior resistance to heat, oxidation, and corrosion, even under severe and high-temperature conditions. Our Inconel 600 wire is designed with accuracy to fulfill rigorous international standards. Extensively applied across industries like aerospace, chemical processing, power generation, and thermal treatment, Jyoti Steels provides quality, consistency, and assured supply to satisfy rigorous application demands.
Inconel 600 Wire consists of Nickel (72% min), Chromium (14–17%), Iron (6–10%), Carbon (max 0.15%), Manganese (max 1%), Silicon (max 0.5%), and Sulfur in trace amounts (max 0.015%). It possesses superior mechanical strength with tensile strength of approximately 655 MPa, yield strength of 310 MPa, and elongation of 30–40%. The density of the wire is 8.47 g/cm³ and melting point is between 1354°C to 1413°C. The alloy is highly resistant to chloride-ion stress corrosion cracking, oxidation, and carburization, hence suitable for use in high-temperature and corrosive conditions.
Inconel 600 Wire Specifications | ||
| Specifications | : | ASTM B166 ASME SB166 |
| Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
| Length | : | 100 mm TO 6000 mm |
| Diameter | : | 10 mm To 100 mm |

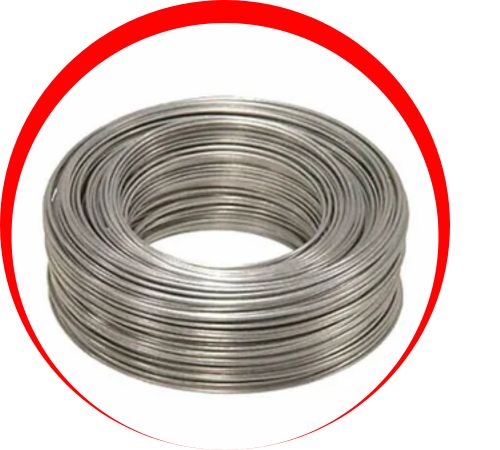

| Specialize | : | Filler Wire, Coil Wire |
| Grade | C | Mn | Si | Cu | S | Cr | Fe | Ni | N |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.50 max | 0.015max | 14.00 – 17.00 | 6.00 – 10.00 | 72.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Wire in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 Wire finds extensive application in those processes that require high strength, thermal stability, and corrosion resistance. In the aerospace sector, it is employed in turbine blades, exhaust systems, and engine parts. In the chemical processing industry, it is utilized in heating elements, furnace wiring, and equipment subjected to acidic or caustic media. Power plants use this wire in nuclear reactor cores and steam generator tubing. It is also used in marine applications, electrical resistance cable, and thermal processing equipment, with long-term performance in harsh temperature and corrosive environments.
