Jyoti Steels, Mumbai, India, is a reliable manufacturer and supplier of Titanium Gr 5 Bars, providing high-quality titanium products designed for high-performance use. Also referred to as Ti-6Al-4V, Titanium Grade 5 is the most widely used titanium alloy because of its excellent strength, corrosion resistance, and superior heat tolerance. Jyoti Steels provides precision-engineered Gr 5 bars according to international standards, catering to critical industries like aerospace, marine, medical, and defense with reliable and long-lasting solutions that work efficiently in harsh environments.
Titanium Gr 5 Bars consist of around 90% Titanium, 6% Aluminum, and 4% Vanadium. The other elements are Oxygen (≤0.20%), Iron (≤0.40%), Carbon (≤0.08%), Nitrogen (≤0.05%), and Hydrogen (≤0.015%). Titanium Gr 5 provides the strength of 895 MPa approx., a yield strength of around 828 MPa, and elongation ranging from 10–15%. With the density of 4.43 g/cm³ and melting temperature approximately 1660°C, Titanium Gr 5 has a perfect blend of low weight characteristics coupled with maximum strength. Its mechanical stability can maintain at a higher temperature level and provides greater resistance to corrosion in seawater, as well as oxidizing surroundings.
| Specifications Chart | ASTM B348/ ASTM SB348 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size in mm | 5 mm To 500 mm |
| Diameter in mm | 0.1 mm to 100 mm |
| Length in mm | 100 mm To 3000 mm Long & Above |
| Surface Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

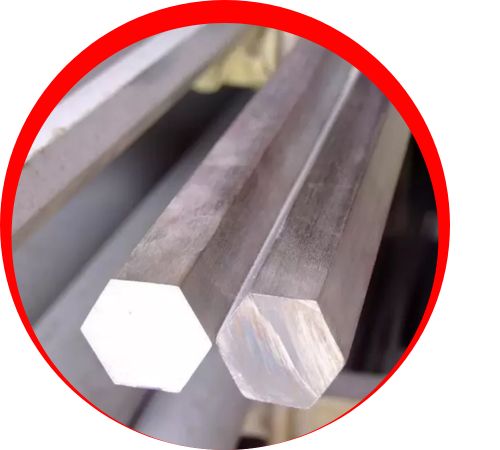

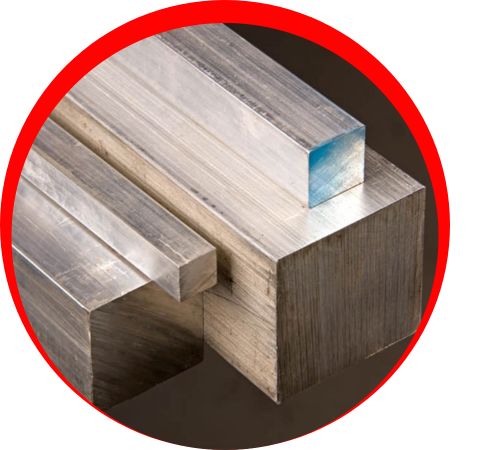

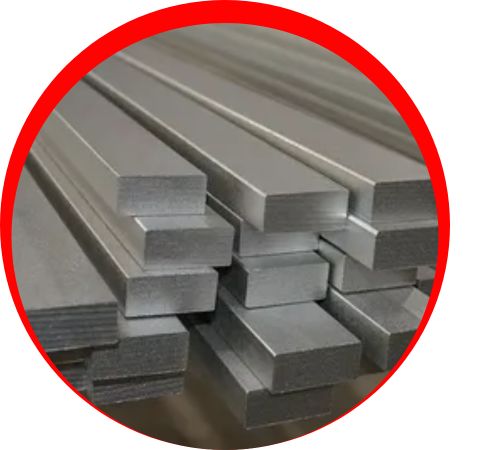

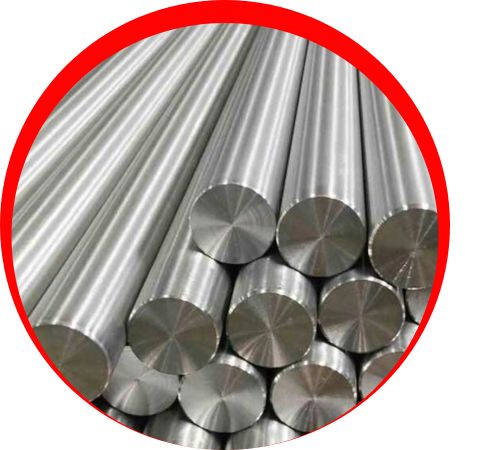

| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | Ti | C | Fe | Al | V | O |
|---|---|---|---|---|---|---|
| Titanium Grade 5 | 90 min | – | 0.25 max | 6 min | 4 min | 0.02 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Gr 5 Bars in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Gr 5 Bars are used extensively in industries requiring high strength, corrosion resistance, and weight efficiency. In aviation, they are employed in aircraft structures, turbine blades, and fasteners. The medical industry uses them for surgical implants and surgical instruments because of biocompatibility. Marine and offshore applications use the bars in saltwater-exposed components. They are also employed in car racing, power generation (especially turbine and condenser parts), and military use where toughness and heat resistance are essential. They are also perfect for sporting equipment and high-performance engineering tools.
