Jyoti Steels is a leading manufacturer and supplier of Titanium Grade 5 Tube Fittings from Mumbai, India. Known for accuracy, quality, and dependability, Jyoti Steels provides sturdy tube fittings that are ideal for high-performance and corrosive environments. Titanium Grade 5 (Ti-6Al-4V) is known for exceptional strength, corrosion resistance, and durability and hence is best suited for demanding industrial applications. With state-of-the-art manufacturing facilities and a customer-centric strategy, Jyoti Steels caters to industries like aerospace, marine, chemical, and energy—gaining a strong foothold in both domestic and global markets.
Titanium Grade 5 Tube Fittings are made up of 90% Titanium, 6% Aluminum, and 4% Vanadium, trace elements including iron ≤ 0.25%, oxygen ≤ 0.2%, carbon ≤ 0.08%, and hydrogen ≤ 0.015%. These fittings are characterized by high mechanical performance, where the tensile strength is ≥ 895 MPa, yield strength ≥ 828 MPa, and elongation is 10%. The physical properties include a density of 4.43 g/cm³ and a melting point of about 1660°C. Grade 5 titanium is very resistant to corrosion and appropriate for high-temperature, high-stress applications and thus the most widely used titanium alloy.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

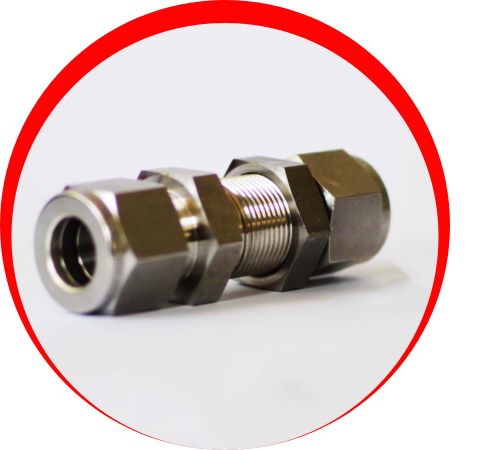

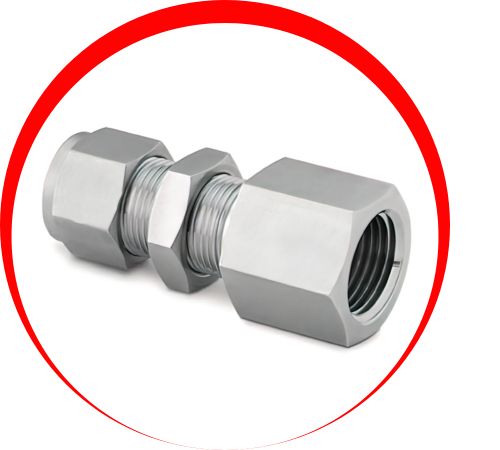

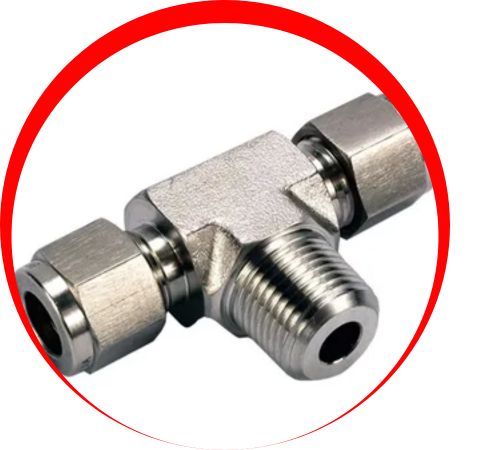

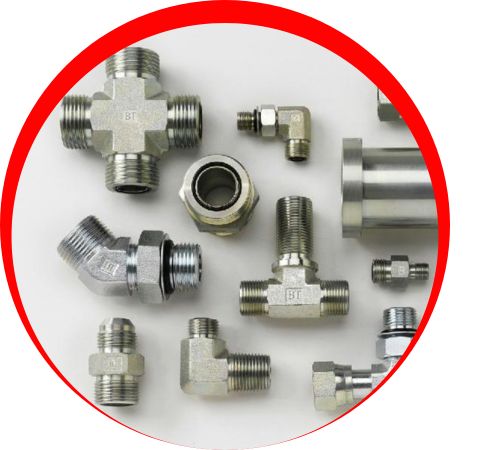

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 5 Tube Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Grade 5 Tube Fittings find broad application in corrosive and high-strength environments. In aerospace, they find application in engine components, hydraulic lines, and fuel systems. They are utilized in shipbuilding and offshore drilling platforms by the marine industry for seawater corrosion resistance. They provide safe, leak-free connections in corrosive process lines of chemical and petrochemical facilities. They are utilized by manufacturers of medical devices for surgical devices and implants. They are also used in power generation, car racing, and military systems where pressure performance is very important.
