Jyoti Steels is a prominent manufacturer and supplier of Titanium Grade 2 Tube Fittings in Mumbai, India, serving the needs of industries with accurate engineering products. Jyoti Steels, with its strong focus on quality, provides fittings that are corrosion-proof, lightweight, and suitable for use in highly corrosive and sensitive industries. Tube fittings are highly demanded by chemical, marine, medical, and aerospace industries. With emphasis placed on durability, precise tolerances, and punctual delivery, Jyoti Steels is a reliable name for titanium solutions in national as well as global markets.
Titanium Grade 2 Tube Fittings contain 99.2% of Titanium, minor quantities of oxygen ≤ 0.25%, iron ≤ 0.3%, carbon ≤ 0.08%, nitrogen ≤ 0.03%, and hydrogen ≤ 0.015%. These have good mechanical strength with a tensile strength of approximately 345 MPa, yield strength of about 275 MPa, and elongation of 20%. Physically, Grade 2 titanium is 4.51 g/cm³ in density, 1665°C in melting point, and has excellent corrosion resistance in oxidizing and mildly reducing environments. All these properties make it perfectly suited for critical, high-performance fluid and gas systems.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |

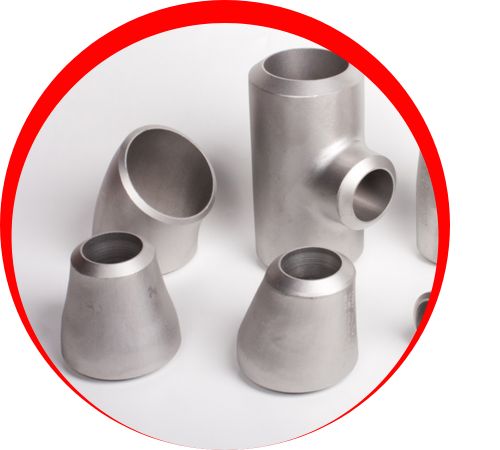

| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

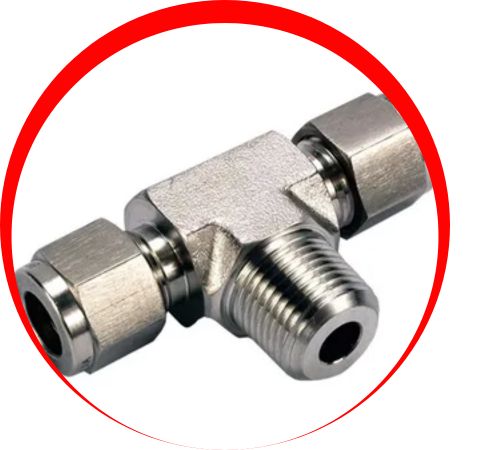

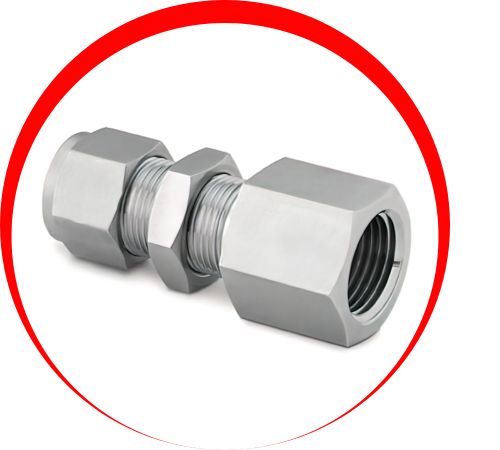

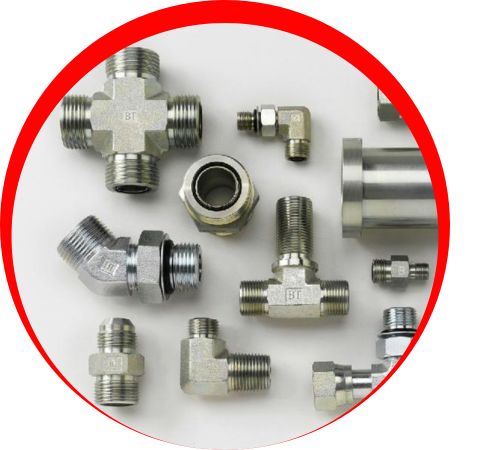

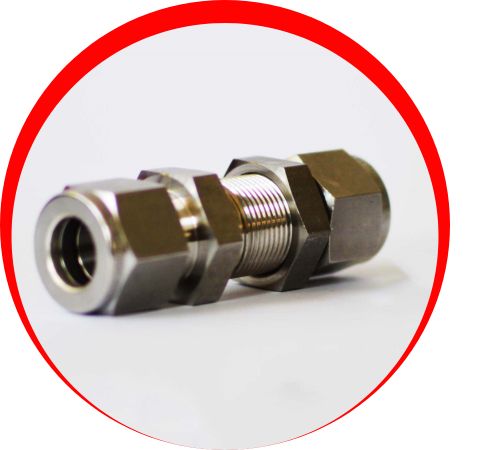

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 2 Tube Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Grade 2 Tube Fittings find extensive application in corrosion-resistant and lightweight applications in various industries. They find application in pipelines for acid or corrosive fluids in the chemical processing industry. They are used by the marine industry in seawater systems and offshore installations because they have high resistance to saltwater corrosion. They are also employed in medical applications in surgical equipment and implants because of their biocompatibility. They are employed by the aerospace industry in fuel line and hydraulic systems. The fittings also find applications in power generation, desalination facilities, and drug manufacturing for making leak-free and durable connections.
