Jyoti Steels is one of the leading Mumbai, India-based manufacturers and suppliers of Titanium Tube Fittings, providing top-quality components optimized for enhanced performance in high-end applications. The fittings are characterized by strength, corrosion resistance, and lightness and are therefore suitable for high-pressure and aggressive environments. Jyoti Steels adheres to rigorous quality control practices and state-of-the-art manufacturing processes to provide accuracy and endurance. Operating in industries like chemical processing, aerospace, marine, and medical, the firm has acquired a reputation for dependability and greatness in the domestic and global markets.
Titanium Tube Fittings, particularly those that are Grade 2 or Grade 5 (Ti-6Al-4V), are usually composed of Titanium ~90%, Aluminum 6%, Vanadium 4%, Fe <0.3%, O <0.2%, C <0.08%. They provide tensile strength up to 895 MPa, yield strength approximately 828 MPa, and elongation of 10–20%. The density is around 4.43 g/cm³, which is 40–45% lighter than steel. They have a melting point of ~1660°C, thermal conductivity of ~6.7 W/m·K, and are non-corrosive and non-magnetic. These physical and mechanical properties provide superior performance in challenging environments with pressure, heat, and corrosive chemicals.
| Specifications (ASTM/ASME) | ASTM B381/381M R56400, ASME SB381/381M R56400 |
| Tube Size | 1/16 OD to 2 OD, Od to 50mm OD |

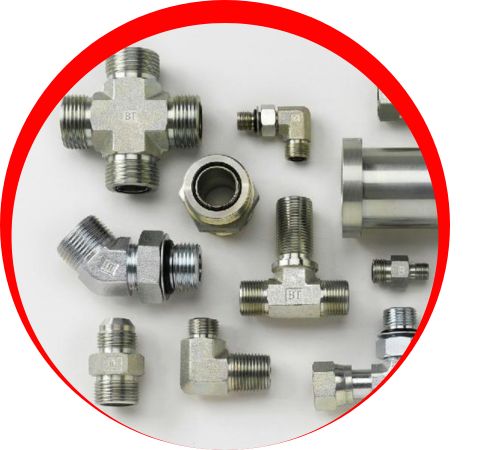

| Types we Offer | Titanium Instrumentation Fittings Ti Grade 5 Double Ferrule Fittings Ti Grade 2 Twin Ferrule Fittings Ti-6al-4v Eli Titanium Ferrule Fittings Pure Titanium Pneumatic Fittings Ti Grade 6 Flare Fittings Cp Gr2 Ti JIC Fittings Tial6v4 Instrumentation Fittings Ti Alloy Grade 5 Hydraulic Hose Fittings ASTM B348 Grade 5 Compression Fittings Cp Grade 1 Double Ferrule Fittings ASME SB 348 Grade 2 Push-To-Connect Fittings Grade 5 Compression Fittings Ti Gr2 Hydraulic Fittings |
| Material Grades | Titanium Gr.5 – UNS R56400, Titanium Gr 2 – UNS R50400 |
| THREAD | BSPT, UNF, BSP, NPT, ISO, SAE, etc. |

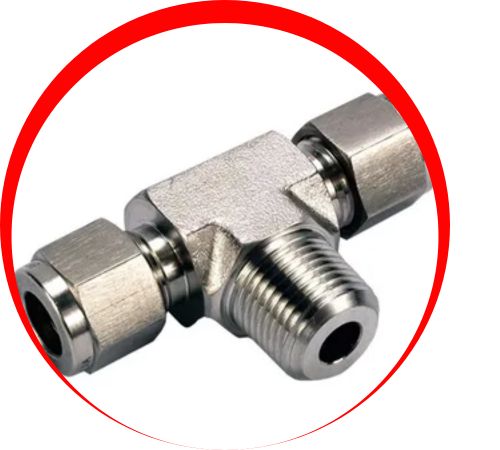

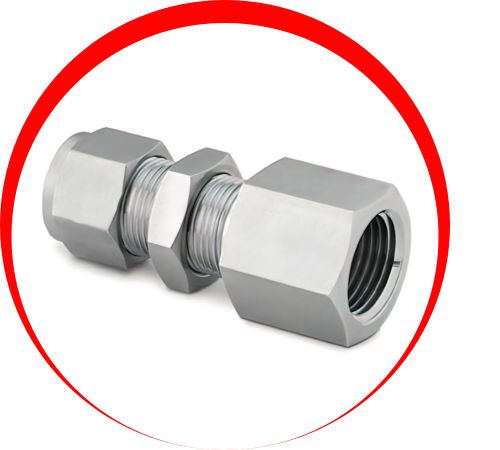

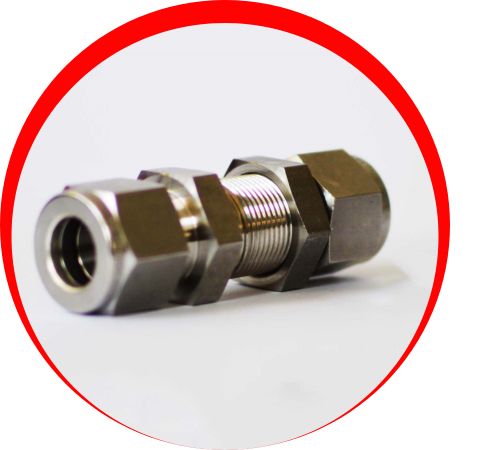

| Forms | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Working Pressure | Upto 2000 to 6000 PSI |
| Medium – Pressure Gaugeable | Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C) |
| High-Pressure | Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) |
| Body Type | FORGED, BAR STOCK |
| PTFE Standards | ASTM D1710, ASTM D3294 |
| Surface | Export bright finish, short blasted finish, electroplated finish |
| Applications Temperature | 150-400°C |

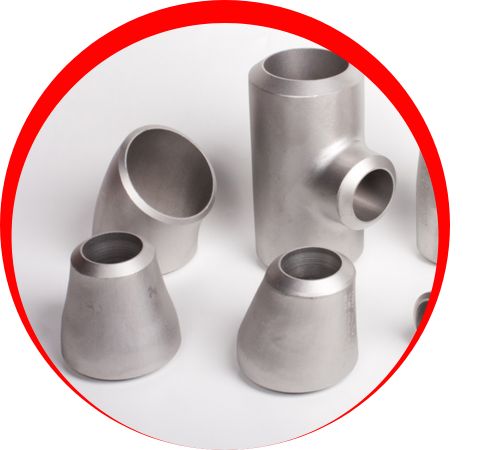

| Ends | Welding, Threaded, JIC |
| Packing Details | As per your detailed request Normally carton size – 21*16*14CM/31*21*16CM/36*45*50CM Normally wooden box size – 38*27*17CM Normally 1piece/ opp, 10-20pcs/ carton |
| Element | Ti | C | Fe | H | N | O | Al | V |
| Titanium | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Tube Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Tube Fittings are widely applied in the petrochemical and chemical industries for conveying corrosive gases and fluids because of their excellent corrosion resistance. In the aerospace industry, they are essential for fuel and hydraulic systems, where weight reduction and strength are vital. In marine usage, they are resistant to saltwater environments, which makes them suitable for offshore platforms and desalination systems. These are also utilized in medical devices and implants due to their biocompatibility. Some other uses are nuclear power systems, pharmaceutical processing, and high-performance racing or automotive systems, where accuracy, reliability, and resistance to harsh conditions are paramount.
