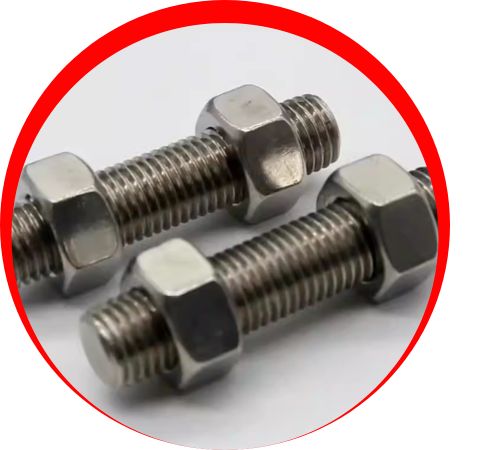

Jyoti Steels is a well-known manufacturer and supplier of Inconel 625 Stud Bolts in Mumbai, India, catering to different industrial sectors with high-quality fasteners. Dedicated to excellence, Jyoti Steels offers corrosion-resistant and high-strength Inconel 625 stud bolts that conform to international quality standards. These bolts are best suited for critical applications in the offshore, petrochemical, and aerospace industries. Supported by accurate manufacturing and rigorous quality control process, Jyoti Steels guarantees consistent performance under harsh operating conditions of high temperature and pressure.
Inconel 625 Stud Bolts consist of about Ni 58%, Cr 20-23%, Mo 8-10%, Nb + Ta 3.15-4.15%, Fe ≤5%, C ≤0.10%, and traces of Mn, Si, and Al. The alloy possesses superior corrosion resistance and strength. It is mechanically provided with a tensile strength of 827 MPa, yield strength of 414 MPa, and elongation of 30%. It has a density of 8.44 g/cm³ and a melting range of 1290–1350°C. The physical and chemical properties combined render Inconel 625 applicable to hostile environments with high temperatures and corrosive substances.
| Specification | ASTM F468, B166 / ASME SF468, SB166 |
|---|---|
| Size | M02 to M33, Custom Sizes |
| Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |

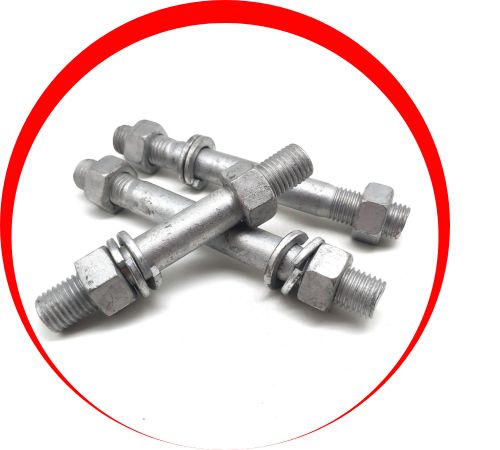

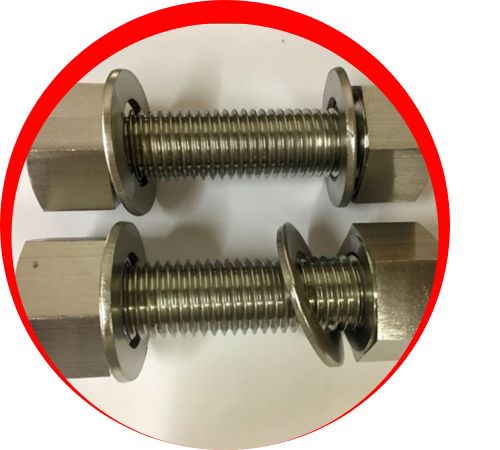

| Types | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 625 Stud Bolts in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 625 Stud Bolts find extensive use in applications where high strength and corrosion and heat resistance are paramount. They find their application in the oil and gas industry in subsea and offshore equipment. In aerospace, they are applied in jet engine and exhaust components. The chemical processing industry uses them for reactors and pressure vessels handling corrosive chemicals. These bolts also find application in nuclear reactors, in marine environments, and heat exchangers, where endurance and stability over long periods at high temperatures and pressures are paramount.
