Jyoti Steels is a leading titanium grade 5 forged fittings manufacturer and supplier based in Mumbai, India, producing high-performance forged fittings designed with ultimate strength, corrosion resistance, and durability. It is reputed for quality testing and compliance with global standards. Jyoti Steels distributes various types of forged fittings applicable to different sectors like aerospace, marine, chemical processing, and medicine. With a commitment to precision engineering and reliable performance, the company ensures that every product delivers superior service life in harsh environments where critical pressure and stress conditions prevail.
Titanium Gr 5 Forged Fittings (Ti-6Al-4V) have about 90% Titanium, 6% Aluminum, and 4% Vanadium, along with trace elements like Iron ≤ 0.3%, Oxygen ≤ 0.2%, Nitrogen ≤ 0.05%, Carbon ≤ 0.08%, and Hydrogen ≤ 0.015%. These fittings provide tensile strength of approximately 895 MPa, yield strength of 830 MPa, and elongation of 10%. At a density of 4.43 g/cm³ and with a melting range of 1604°C – 1660°C, Titanium Gr 5 exhibits superior corrosion resistance, mechanical performance, and high thermal stability, and it is thus recommended for severe structural and corrosive applications.
| Specifications | ASTM B381 / ASME SB381 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

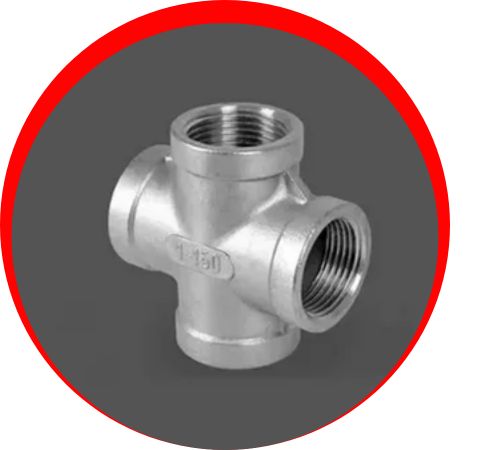

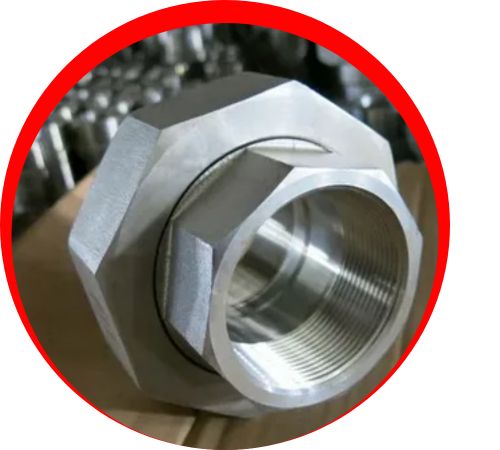

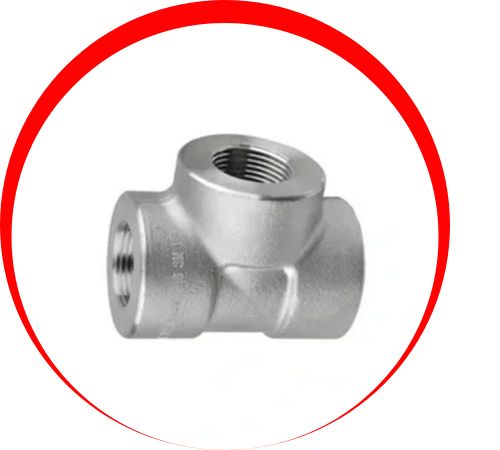

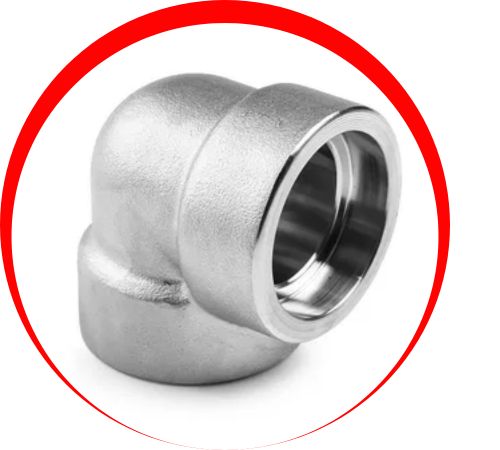

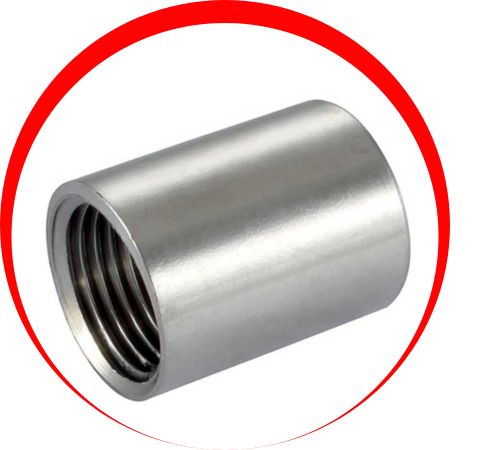

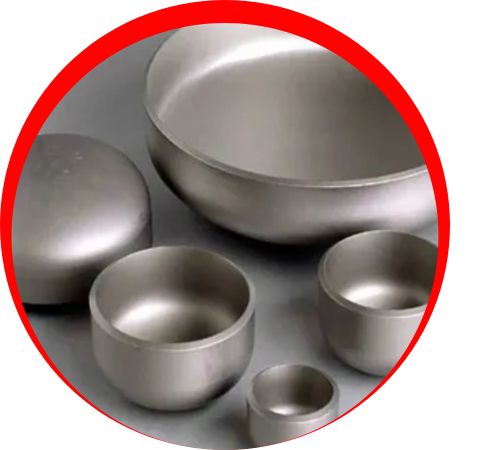

| Specialized manufacturer of | 90 Deg Forged Elbows, 45 Deg Forged Elbow, Tee, Cross, Coupling, End Cap, Union, Bushing, Plug, Barrel Nipple |
| Grade | C | N | O | H | Ti | Fe |
| Ti Gr.5 | 0.10 max | 0.05 max | 0.25 max | 0.015 max | Bal | 0.40 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Gr 5 Forged Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Gr 5 Forged Fittings have extensive applications in aerospace systems such as hydraulic and fuel line fittings because of their high strength-to-weight ratio. In the shipbuilding and offshore platforms in the marine industry, they are utilized for their seawater corrosion resistance. They find critical application in chemical processing plants for handling corrosive and high-pressure fluids. The medical field uses them for surgical and orthopedic devices because of their biocompatibility. They also find application in power plants, automotive units, and industrial equipment, where thermal resistance, stress resistance, and chemical aggressiveness are critical.
