Jyoti Steels is a renowned manufacturer and supplier of Inconel 600 Bars in Mumbai, India, providing high-quality nickel-chromium alloy products for severe industrial applications. Inconel 600 is renowned for its superior resistance to high temperatures, oxidation, and corrosion, which makes it a sought-after material in chemical processing, aerospace, and power generation industries. At Jyoti Steels, we provide Inconel 600 Bars to global standards with precision and reliability. Our emphasis on quality, reliability, and prompt delivery has transformed us into a preferred partner of clients in India and export markets.
Inconel 600 Bars consist of Nickel (72% min), Chromium (14–17%), and Iron (6–10%), with traces of Carbon (max 0.15%), Manganese (max 1%), and Silicon (max 0.5%). These bars possess good mechanical properties, such as tensile strength of approximately 655 MPa, yield strength of 310 MPa, and elongation of 30–40%. The density is about 8.47 g/cm³, and the melting point is between 1354 and 1413°C. Inconel 600 is resistant to chloride-ion stress-corrosion cracking and retains its strength and structure in high-temperature and oxidizing conditions.
| Specification | ASTM B166 UNS N06600, AMS 5665 |
|---|---|

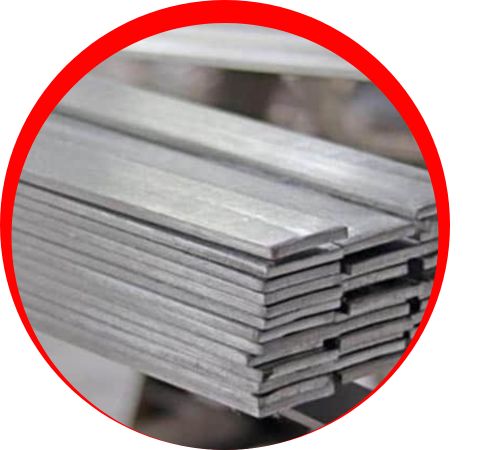

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

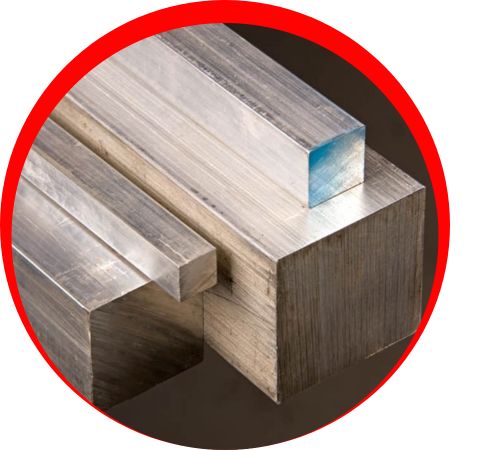

| Square bar size | 4 to 100mm |

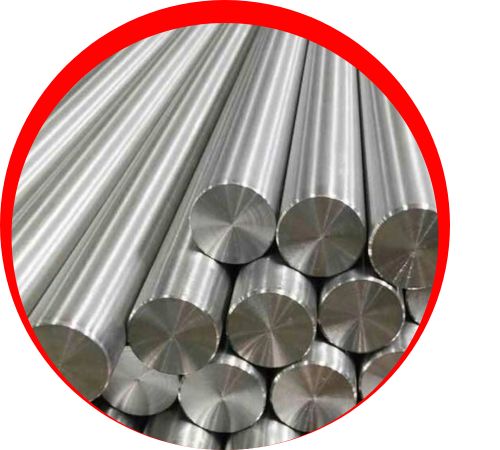

| Round bar size | Diameter: 3-~800mm |

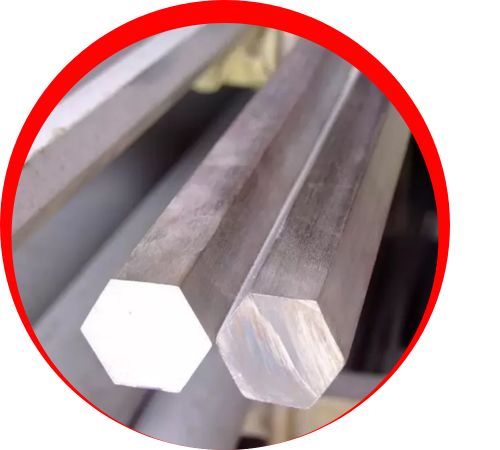

| Hex Bar size | 2-100mm A/F |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |

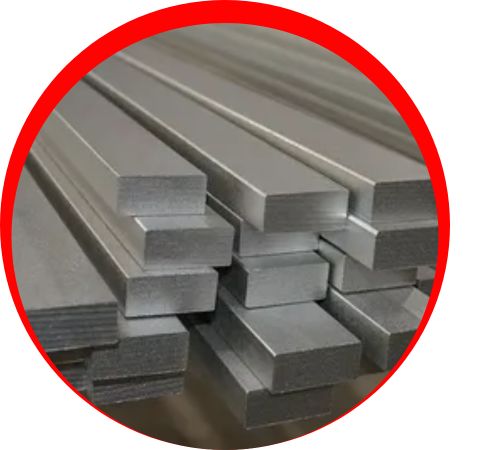

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Condition | Hardened & tempered, annealed |
| Technique | 600 Inconel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |

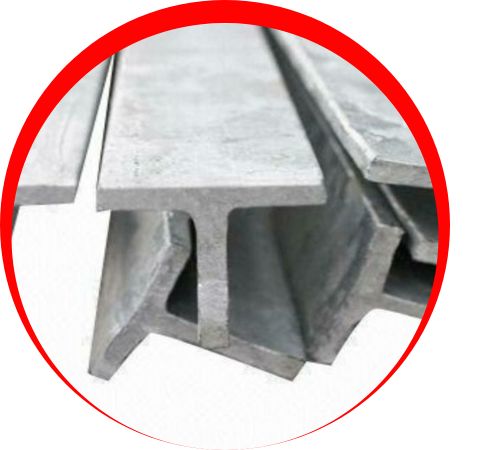

| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Bars in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 Bars are applied in various demanding applications because of their high strength and corrosion and heat resistance. In the chemical industry, they are utilized in heaters, condensers, and evaporators which come into contact with acidic and caustic environments. In the aerospace, they are perfectly suitable for engine parts and exhaust systems. Power generation plants utilize Inconel 600 for steam generator tubing and nuclear reactor cores. It is also utilized in food processing, heat treating equipment, and marine use where extended exposure to heat and corrosive factors occurs.
