Jyoti Steels is one of the highly regarded manufacturers and suppliers of high-quality Inconel 800-H Bar in Mumbai, India. Being highly dedicated to providing high-performance, corrosion-resistant, and heat-resistant alloy bars, Jyoti Steels caters to various industrial segments all over the world. Employing cutting-edge manufacturing methods, strict quality control measures, and international standards, the company produces excellent products matching stringent application needs. Their Inconel 800-H bars are relied upon for durability, strength, and reliability to make Jyoti Steels a go-to source for customers requiring strong alloy solutions for challenging environments.
Inconel 800-H Bar is composed mainly of Nickel (30–35%), Chromium (19–23%), and Iron (balance) with the addition of Carbon (0.05–0.10%), Aluminum (0.15–0.60%), and Titanium (0.15–0.60%). The bars have superior mechanical properties such as tensile strength ≥520 MPa, yield strength ≥205 MPa, and elongation of 30%. Physically, they are renowned for excellent oxidation and carburization resistance at high temperatures and possess a melting point of 1357–1385°C. These properties render Inconel 800-H bars perfectly suited for high-temperature structural applications, with excellent metallurgical stability and mechanical strength under thermal stress and corrosive environments.
| Standards : | ASTM B408, ASME SB408 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

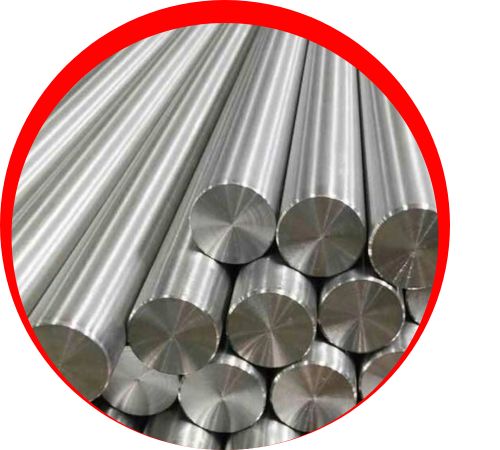

| Round bar size : | Diameter: 3-~800mm |

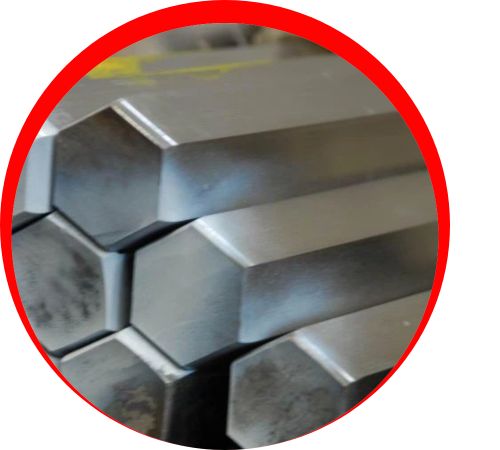

| Hex Bar size : | 2-100mm A/F |

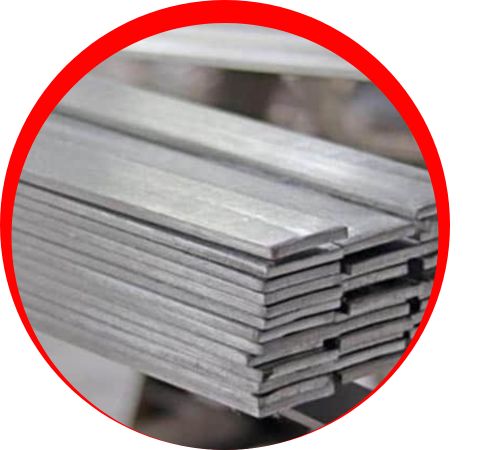

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

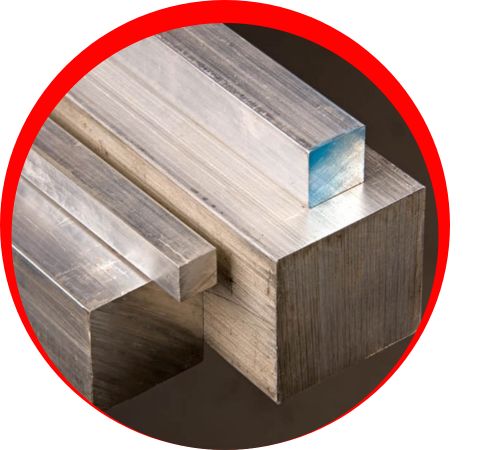

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 800-H Bar in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 800-H Bar finds extensive application in those applications where high-temperature strength and corrosion resistance are critical. It is widely utilized in chemical process plants, power plants, heat exchangers, superheaters, reheaters, and furnace parts. The capability of the alloy to resist oxidation, carburization, and prolonged exposure to high temperatures qualifies it for utilization in petrochemical plants, nuclear reactors, and offshore equipment. Inconel 800-H bars are essential to provide structural integrity and extended service life under conditions where common materials do not survive, assuring safety and reliable performance in severe operating environments.
