Jyoti Steels is a well-known producer and exporter of high-grade Incoloy 800/800H/800HT Bolts in Mumbai, India. With a dedicated focus on precision engineering and global quality standards, Jyoti Steels has gained a sound reputation for producing corrosion-resistant, high-temperature fasteners for challenging industrial uses. Supported by state-of-the-art manufacturing facilities and an experienced workforce, the company serves different industries with tailor-made solutions and prompt deliveries, guaranteeing consistent customer satisfaction. Jyoti Steels is relied upon in India and overseas for its commitment to excellence and innovation in specialty alloy fasteners.
Incoloy 800/800H/800HT Bolts contain Nickel (30-35%), Chromium (19-23%), and Iron (balance), along with the additions of Carbon (maximum 0.10% for 800, 0.05–0.10% for 800H, and 0.06–0.10% for 800HT), Aluminum (0.15–0.60%), and Titanium (0.15–0.60%). Incoloy 800/800H/800HT Bolts are made with good tensile strength ranging between 520 MPa, yield strength of 205 MPa, and elongation of 30%. Its melting point is near 1357°C. They possess good creep and rupture strength, corrosion resistance, and thermal stability, which suits them well for high-temperature conditions along with structural integrity under mechanical loads.
|
Alloy 800/800H/800HT Bolt Specifications |
||
| Specifications | : | ASTM B 408 ASME SB 408 |
| Standard | : | DIN, ASTM, BS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |

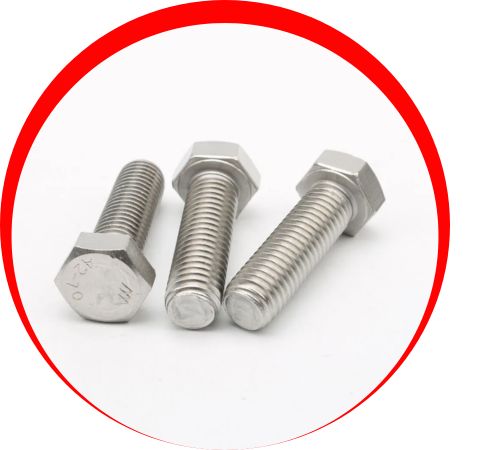

| Type | : | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts. |
| Grade | C | Mn | Si | Fe | S | Cr | Al-Ti | Ni | |
| 800 | min. | – | – | – | 39.5 | – | 19.0 | 0.15 | 30.0 |
| max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 0.60 | 35.0 | |
| 800H | min. | 0.05 | – | – | 39.5 | – | 19.0 | 0.15 | 30.0 |
| max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 0.60 | 35.0 | |
| 800HT | min. | 0.06 | – | – | 39.5 | – | 19.0 | 0.85/0.25 | 30.0 |
| max. | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 1.20/0.60 | 35.0 | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 800-H-HT | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa –205 | 30 | – | – |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 800/800H/800HT Bolts in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 800/800H/800HT Bolts have extensive application where there is a requirement for high oxidation and carburization resistance at high temperatures. Some of these include heat exchangers, pressure vessels, industrial furnaces, petrochemical processing, power generation facilities, and nuclear applications. Their high mechanical strength and corrosion resistance in acidic and high-temperature conditions qualify them for application in chemical plants, oil refineries, superheater and reheater tubing, and steam generators. The bolts are critical in equipment that requires long-term exposure to high temperature and pressure without losing mechanical properties and structural stability.
