Incoloy Forgings are produced from nickel-iron-chromium alloys, normally consisting of Nickel (38-46%), Chromium (19.5-23.5%), Iron (balance), Molybdenum (2.5-3.5%), Copper (1.5-3%), and Titanium (0.6-1.2%). These forgings have superior mechanical properties, with tensile strength of about 585 MPa and yield strength of 220 MPa. Elongation is ≥30%, providing good formability and ductility. Physically, Incoloy is 8.14 g/cm³ in density and has a melting range of 1370–1400°C. These properties render it extremely resistant to acidic environments, stress corrosion cracking, and oxidation.
| Specifications | ASTM B564, ASME SB564, AMS 5766 |
|---|---|
| Standard | ISO 9725, DIN 17460, DIN, ASTM, BS and all International Standards |

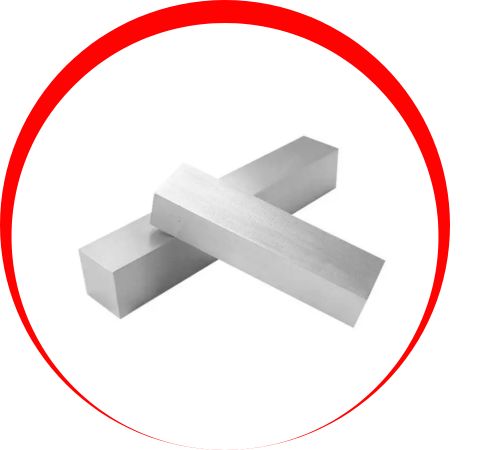

| Flat bar blocks | up to 27″ width and 15,000 lbs |

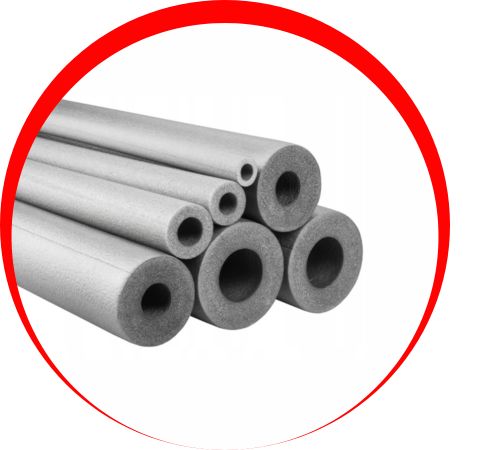

| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

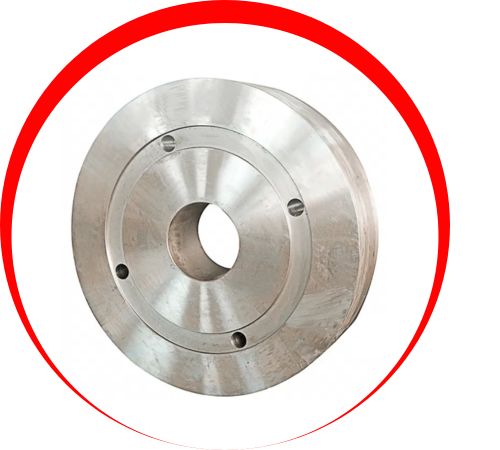

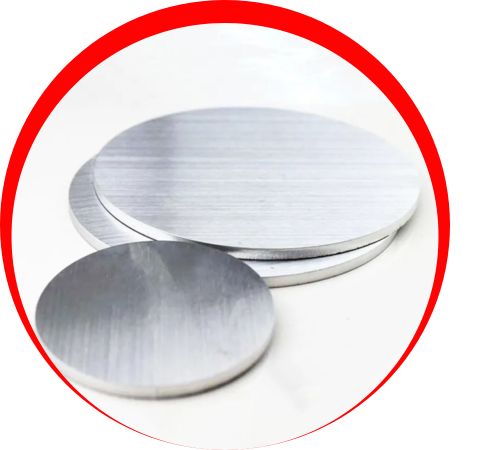

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

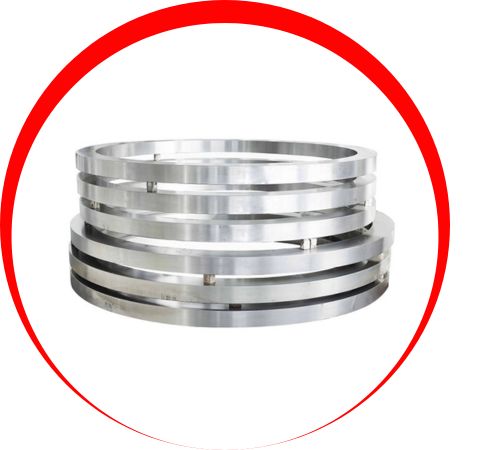

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

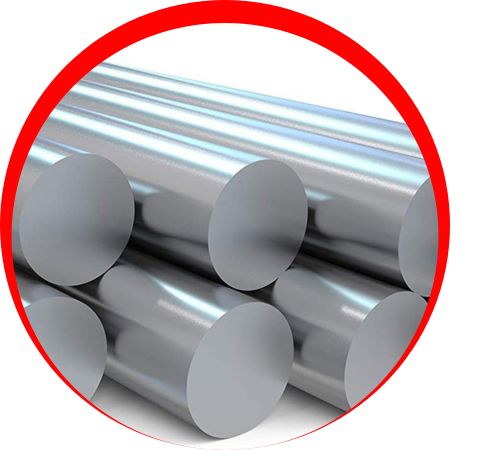

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy Forgings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy Forgings are widely applied in high-performance material demanding industries for severe applications. They are typically found in chemical processing equipment, pressure vessels, heat exchangers, nuclear reactors, and marine hardware. Their outstanding acid and high-temperature oxidation resistance makes them perfectly suited for use in components where sulfuric, phosphoric, and nitric acids are involved. Incoloy forgings are also found in oil and gas drilling, pollution control systems, and in aerospace engineering. Their capacity for retaining strength and corrosion resistance during harsh service conditions guarantees long-term reliability and safety in adverse conditions.
