Incoloy 825 Forgings are mainly composed of Nickel (38-46%), Iron (balance), Chromium (19-23%), Molybdenum (2.5-3.5%), and small percentages of Titanium (0.6-1.2%), Aluminum (0.2-0.6%), and Copper (1.5-3%). The alloy has very good mechanical properties, including tensile strength of approximately 620 MPa, yield strength of 275 MPa, and elongation of about 30%. Incoloy 825 contains a density of 8.3 g/cm³ and a melting range of 1300–1350°C. Due to its good resistance to stress corrosion cracking, pitting, and oxidation, Incoloy 825 is extremely ideal for use in high-stress and corrosive environments.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

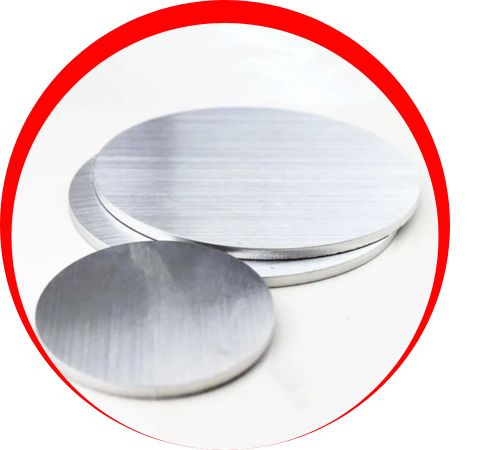

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

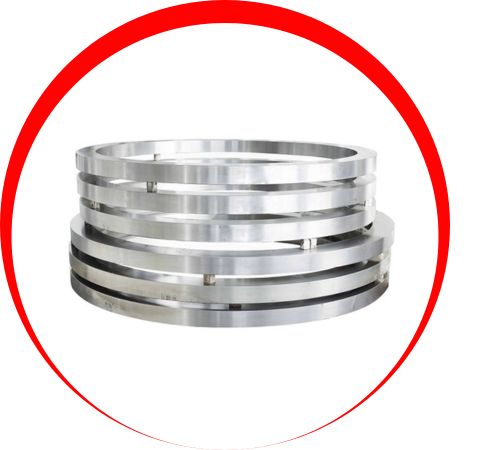

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

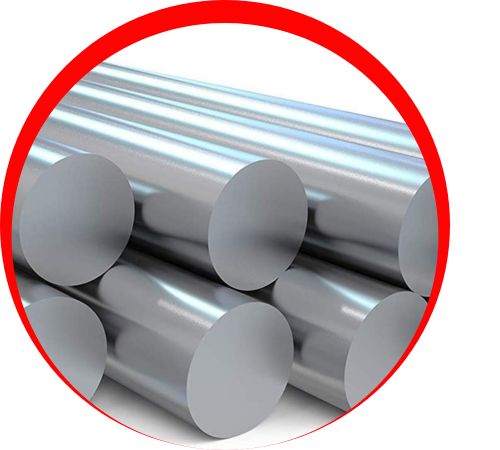

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Forgings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 825 Forgings have great application in corrosive resistance as well as the ability to with stand high-temperature requirements in industries. The chemical process industry employs Incoloy 825 for apparatus like reactors, heat exchangers, and vessels used in exposure to corrosive fluids. Within the oil and gas industry, Incoloy 825 applies to elements that include valves as well as piping where with standing aggressive chemicals along with with stading elevated temperature requirements are demanded. Furthermore, Incoloy 825 Forgings are also utilized in nuclear power plants, marine environments, and pollution control systems, with the assurance of long-term reliability under harsh conditions.
