Jyoti Steels, a Mumbai, India-based manufacturer and supplier of high-grade Incoloy 825 Nuts, caters to industries that require exceptional strength and corrosion resistance from fastening solutions. Renowned for precision engineering and strict adherence to global standards, Jyoti Steels provides long-lasting and reliable Incoloy 825 nuts for use in severe chemical and marine exposures. Quality-driven, consistent, and customer-centric approach, Jyoti Steels offers fastening products that function well under high stress and corrosive conditions and thus are well suited for applications in oil & gas, petrochemical, and industrial processing.
Incoloy 825 Nuts consist of Nickel (38–46%), Iron (min 22%), Chromium (19.5–23.5%), Molybdenum (2.5–3.5%), Copper (1.5–3%), Titanium (0.6–1.2%), with minor levels of Carbon (max 0.05%) and Manganese (max 1%). These nuts have very good mechanical properties, such as tensile strength of 690 MPa, yield strength of 275 MPa, and elongation of 30%. Their physical properties are a density of 8.14 g/cm³ and a melting point of about 1370°C, providing very good durability, high-temperature stability, and resistance to pitting, crevice corrosion, and stress corrosion cracking.
| Specifications | : | ASTM B 425 ASME SB 425 |
| Standard | : | DIN, ASTM, BS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |

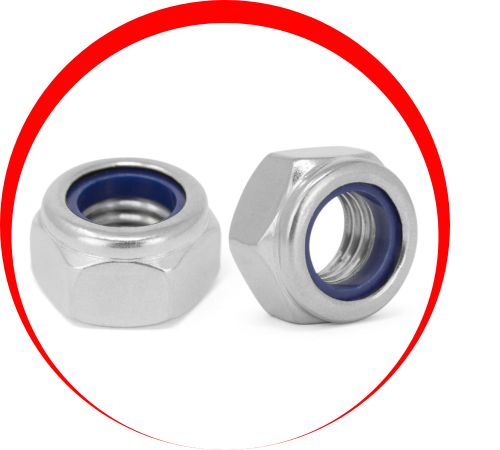

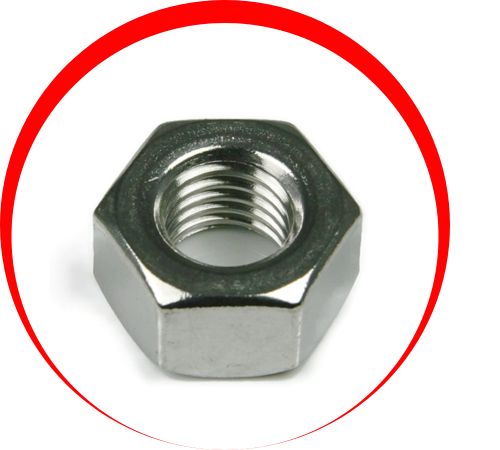

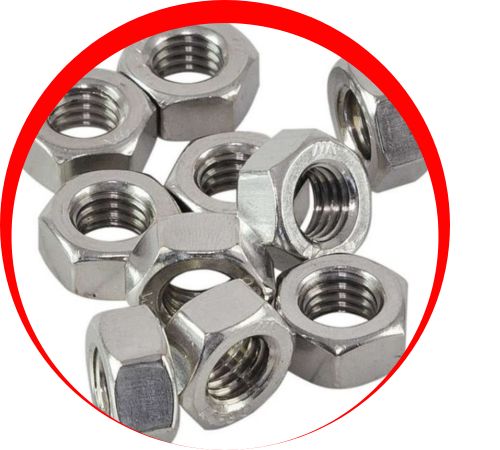

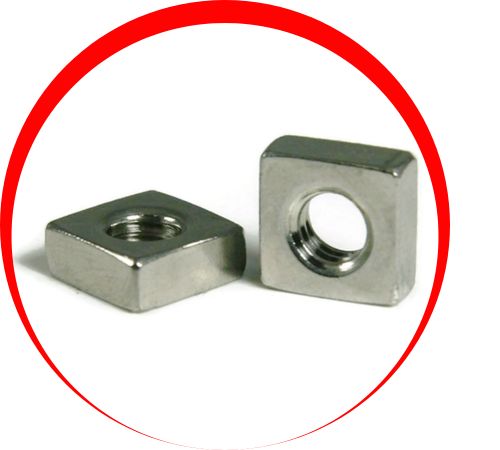

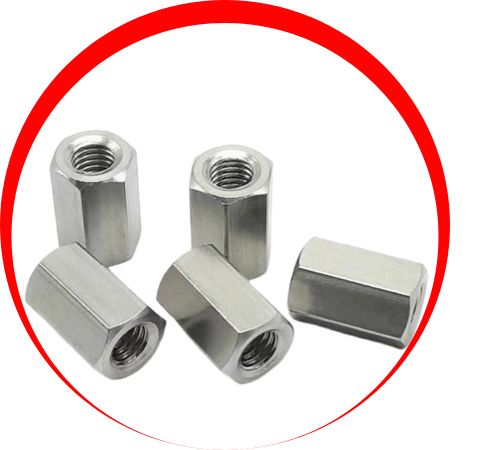

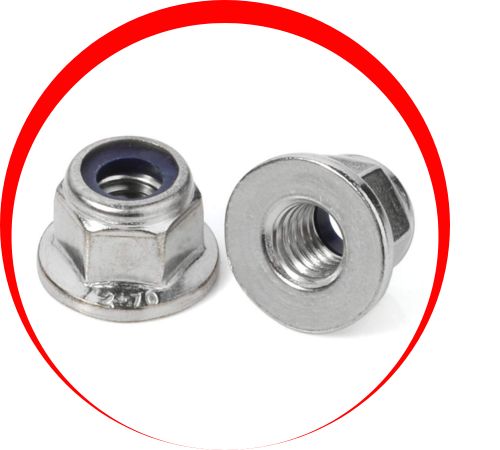

| Type | : | Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts. |
| Grade | C | Mn | Si | Fe | S | Cr | Cu | Ti | |
| 825 | min. | – | – | – | 22.0 | – | 19.5 | 1.5 | 0.6 |
| max. | 0.05 | 1.0 | 0.5 | – | 0.015 | 23.5 | 3.0 | 1.2 | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 825 | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa –220 | 30 | – | – |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Nuts Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 825 Nuts have extensive applications in chemical processing, marine engineering, pollution control devices, oil and gas exploration and production, and nuclear fuel reprocessing. The superior resistance offered by them in acidic environments like sulfuric acid and phosphoric acid makes them suitable for usage in pumps, valves, heat exchangers, and piping systems. Incoloy 825 Nuts are particularly excellent in environments having both oxidizing and reducing agents. Because of their sustained service in high pressure and high-temperature conditions, Incoloy 825 nuts are most opted for to hold parts in structures of offshore terminals, chemical manufacturing plants, etc., with demands for high structure integrity and dependability.
