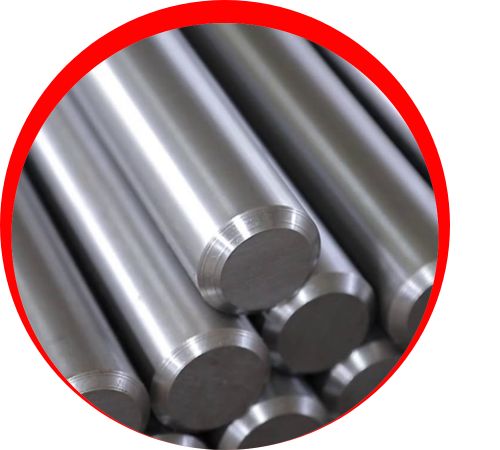

Jyoti Steels is a reputable Permalloy Round Bars manufacturer and supplier located in Mumbai, India. With expertise in soft magnetic alloys, Jyoti Steels provides high-quality Permalloy bars that are renowned for high magnetic permeability and low coercivity. Equipped with advanced manufacturing techniques and strict quality controls, Jyoti Steels delivers round bars conforming to international specifications and standards. The round bars find extensive applications in precision electronics, magnetic, and communication fields. Jyoti Steels is dedicated to providing long-lasting, high-performance materials to a wide range of customers across industries in India and overseas.
Permalloy Round Bars consist predominantly of Nickel (80%) and Iron (20%), with minute amounts of Molybdenum or Copper depending on the grade. The composition provides it with excellent magnetic properties, such as high magnetic permeability and low core loss. Mechanically, Permalloy possesses tensile strength of about 500 MPa and good ductility with elongation of about 30%. It possesses a density of about 8.7 g/cm³ and a Curie temperature of about 570°C. These characteristics render Permalloy suitable for use in applications involving effective magnetic shielding, low energy loss, and stable operation under magnetic cycling.
| Standards : | — |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Round Bar, Wire |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| C | P | S | Mn | Si | Ni | Cr | Co | Mo | Cu | Fe | |
| 1J46 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.15-0.30 | 45-46.5 | – | – | – | ≤0.2 | Balance |
| 1J50 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 49-50.5 | – | – | – | ≤0.2 | Balance |
| 1J79 | ≤0.03 | ≤0.02 | ≤0.02 | 0.6-1.1 | 0.30-0.50 | 78.5-81.5 | – | – | 3.8-4.1 | ≤0.2 | Balance |
| 1J85 | ≤0.03 | ≤0.02 | ≤0.02 | 0.3-0.6 | 0.15-0.30 | 79-81 | – | – | 4.8-5.2 | ≤0.2 | Balance |
| Grade | Resisitivity (μΩ•m) | Desinty (g/cm3) | CuriePoint℃ | HighSaturatedmagneto-strictioncoefficient λθ/10-6 | Brinellhardness HBS | σbTensile Strength MPa | σsYieldStrength MPa | Elongation (%)δ | ||||
| unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | unan- nealed | an- nealed | |||||
| 1J46 | 0.45 | 8.2 | 400 | 25 | 170 | 130 | 735 | 735 | 3 | |||
| 1J50 | 0.45 | 8.2 | 500 | 25 | 170 | 130 | 785 | 450 | 685 | 150 | 3 | 37 |
| 1J79 | 0.55 | 8.6 | 450 | 2 | 210 | 120 | 1030 | 560 | 980 | 150 | 3 | 50 |
| 1J85 | 0.56 | 8.75 | 400 | 0.5 | – | – | – | – | – | – | – | – |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Permalloy Round Bar in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Permalloy Round Bars are employed extensively in electronic and magnetic applications because they possess very good soft magnetic properties. Typical applications include transformer cores, magnetic shielding in sensitive electronic instruments, inductors, sensors, and magnetic amplifiers. In telecommunications, Permalloy is used in magnetic recording heads and antenna systems. Aerospace and defense industries use it in navigation and guidance systems owing to its low magnetic hysteresis. It is also of utmost importance in precision instruments and medical equipment where precise electromagnetic response is crucial. Its versatility also makes it a material of choice for high-performance magnetic applications.
