Jyoti Steels, a well-known Mumbai manufacturer and supplier in India, provides superior-quality AWS Class ERNi-1 MIG and TIG Filler Welding Wire and Rod. Specifically developed for welding pure nickel and nickel-based alloys, these fillers are aimed to provide superior strength, corrosion resistance, and ductility. Supported by state-of-the-art manufacturing facilities and rigorous quality control, Jyoti Steels guarantees reliable weldability and performance in a broad range of applications and industries, such as chemical processing, food handling, and marine industries. Our ERNi-1 welding products are perfect for fabrication and repair use in corrosive and elevated temperature applications.
AWS Class ERNi-1 MIG and TIG Filler Wire and Rod generally consist of 99.6% minimum Nickel (Ni) with trace amounts of elements such as Carbon (≤0.15%), Manganese (≤1.25%), Silicon (≤0.75%), Sulfur (≤0.015%), and Iron (≤0.40%). The high-purity nickel content leads to superior corrosion resistance, particularly in alkaline and neutral salt environments. It has a tensile strength of approximately 415 MPa, yield strength of 105 MPa, and elongation of approximately 40%. With a melting point of around 1455°C and a density of 8.89 g/cm³, ERNi-1 is optimally suited to applications requiring top-notch thermal and corrosion performance.
| Classification | AWS A5.14, ERNi-1 |

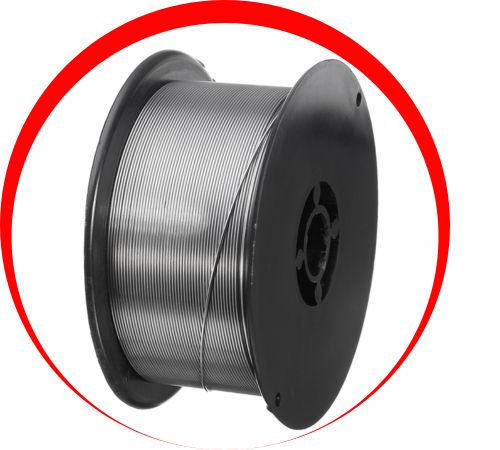

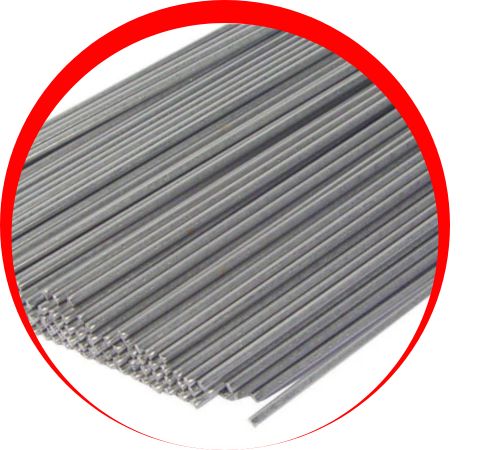

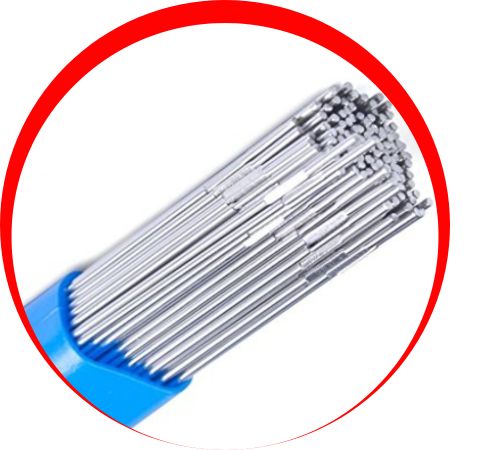

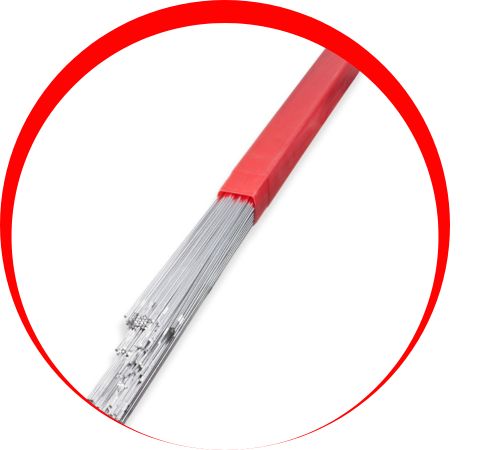

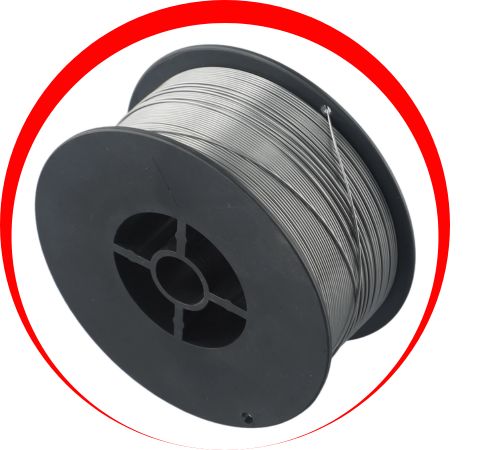

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNi-1 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | S | P | Ni | Fe | Cu | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|
| ≤0.15 | ≤1 | ≤0.75 | ≤0.015 | ≤0.02 | ≥93 | ≤1 | ≤0.25 | ≤1.5 | 2-3.5 |
| Tensile Strength MPa(ksi) | Yield Strength MPa(ksi) | Elongation % | |
|---|---|---|---|
| AWS requirement | 380(55) | Not specified | Not specified |
| Typical results as welded | 460(67) | 260(38) | 28 |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNi-1 MIG and TIG Filler Welding Wire and Rod in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
AWS Class ERNi-1 MIG and TIG Filler Welding Wire and Rod are utilized mainly for welding pure nickel and nickel joining with other metals like stainless steel. Common uses are chemical and food processing equipment, caustic evaporators, marine hardware, storage tanks, and aerospace parts. Its superior resistance to a variety of corrosive media, especially in caustic alkali environments, is well suited to the handling of caustic soda and salt brines. It is also commonly used in cryogenic services and where high-temperature oxidation resistance is a requirement. ERNi-1 provides high-quality welds with low porosity and superior mechanical properties.
