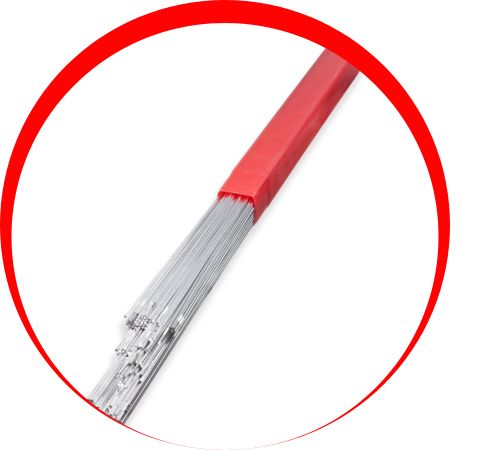

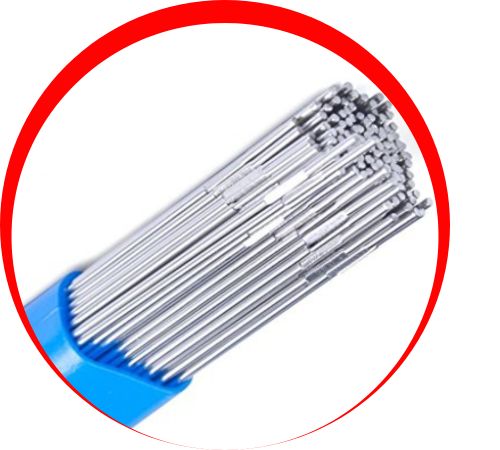

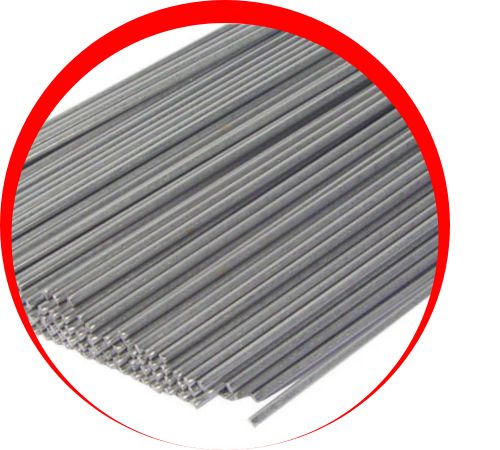

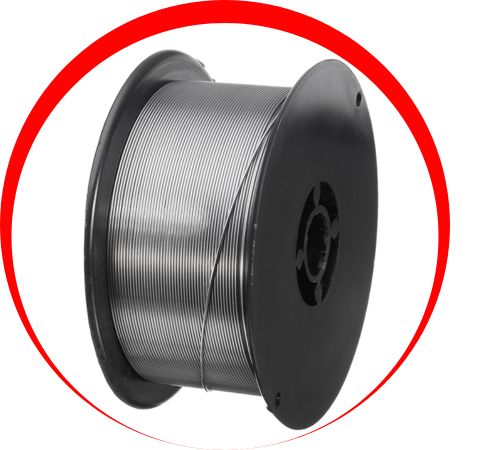

Jyoti Steels, a Mumbai, India-based manufacturer and supplier of top-quality AWS Class ERNiCrMo-10 MIG and TIG Filler Welding Wire and Rod for use in critical welding applications. The filler materials are specially formulated for joining and overlaying high-performance nickel-chromium-molybdenum alloys for use in highly corrosive and high-temperature conditions. Renowned for their superior arc stability and resistance to corrosion, ERNiCrMo-10 Jyoti Steels products find extensive application in the petrochemical, offshore, aerospace, and nuclear sectors. Our strict adherence to quality guarantees high-strength, flaw-free welds for the most rigorous fabrication and repair work.
AWS Class ERNiCrMo-10 TIG and MIG Filler Wire and Rod generally have 55–63% Nickel (Ni), 20–24% Chromium (Cr), 8–10% Molybdenum (Mo), 2.5–3.5% Tungsten (W), and up to 5% Iron (Fe). Trace constituents are Manganese (≤1.0%), Silicon (≤0.5%), and Carbon (≤0.05%). This alloy provides a tensile strength of 750–850 MPa, yield strength approximately 550 MPa, and elongation of 25–35%. Having a density of around 8.5 g/cm³ and a melting point of greater than 1300°C, ERNiCrMo-10 is highly acclaimed for its unparalleled resistance to stress corrosion cracking, crevice corrosion, and pitting in chemically aggressive seawater environments.
| Classification | AWS A5.14, ERNiCrMo-10 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNiCrMo-10 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Fe | P | S | Si | Cu | Ni | Co | Cr | Mo | V | W | Other |
| 0.015 | 0.50 | 2.0-6.0 | 0.02 | 0.010 | 0.08 | 0.50 | Rem | 2.5 | 20.0-22.5 | 12.5-14.5 | 0.35 | 2.5-3.5 | 0.5 |
| Tensile (psi) | 100,000 |
|---|---|
| Mpa | 690 |
| Elongation (%) | 30 |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNiCrMo-10 MIG and TIG Filler Welding Wire and Rod in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
MIG and TIG Filler Welding Wire and Rod of AWS Class ERNiCrMo-10 finds extensive applications to weld nickel base alloys such as Alloy C-22 and C-276 for use in sour environments. Standard uses involve construction of heat exchangers, pressure vessels, reactors, scrubbers, and other chemical processing equipment used in the pulp and paper, marine, and offshore markets. These fillers are utilized to join unlike metals and in cladding situations where corrosion resistance is required. Their superior resistance to oxidizing and reducing acids such as nitric, hydrochloric, and sulfuric acid environments renders them well-suited for aggressive industrial processes and long-term, high-performance application.
