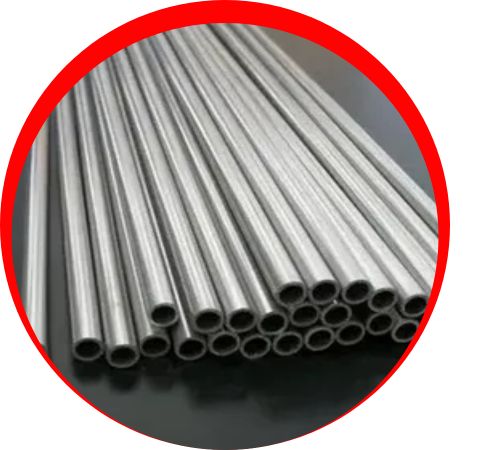

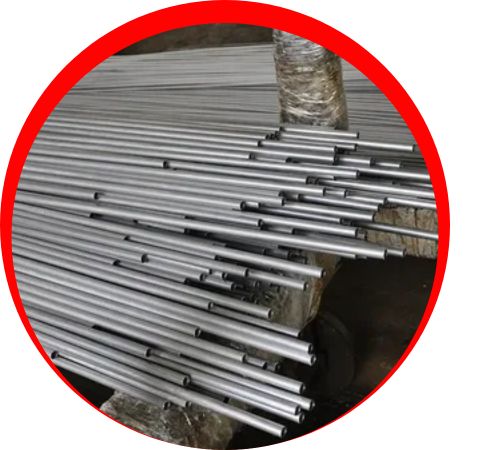

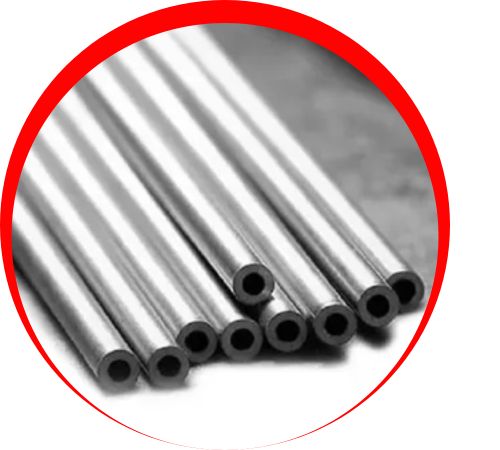

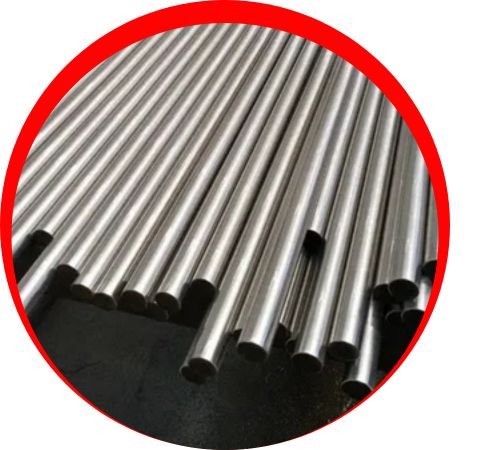

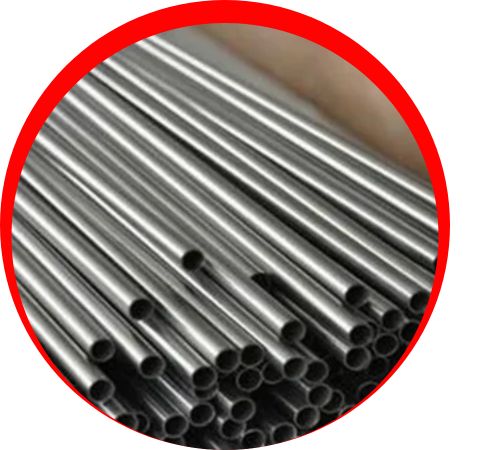

Mumbai, India-based Jyoti Steels is a leading manufacturer and supplier of superior-grade Incoloy 800/800H/800HT Tubing, intended for applications in corrosive and high-temperature environments. Established on the pillars of quality and customer satisfaction, Jyoti Steels offers tubing solutions of international quality and industry-specific standards. These tube products find broad applications in industries such as petrochemicals, power generation, and thermal processing with excellent mechanical strength, oxidation resistance, and metallurgical stability, even at very harsh thermal and pressure conditions.
Incoloy 800/800H/800HT Tubing consists of Nickel (30–35%), Chromium (19–23%), Iron (balance), and also Carbon (0.05–0.10% in 800HT), Aluminum (0.15–0.60%), and Titanium (0.15–0.60%). These alloys possess high mechanical strength with tensile strength of approximately 600 MPa, yield strength of approximately 275 MPa, and elongation of 30%. Physical properties are a density of 7.94 g/cm³ and a melting range of 1357°C to 1385°C. This composition provides the tubing with superior resistance to oxidation, carburization, and sulfidation and is thus ideal for continuous high-temperature service in hostile atmospheres.
| Standard | ASTM B423, B705 / ASME SB 423, SB 705 |
| Standard | ASTM, ASME and API |
| Size | 15 NB UP TO 600 NB IN SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS |
| Length | Single Random, Double Random & Required Length, Cut Length |
| End | Plain End, Beveled End, Treaded |
| Element | Alloy 800 | Alloy 800H | Alloy 800HT |
| C | 0.10 max | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max | 1.50 max |
| Si | 1.00 max | 1.00 max | 1.00 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Fe | 39.50 min | 39.50 min | 39.50 min |
| Ni | 30.00 – 35.00 | 30.00 – 35.00 | 30.00 – 35.00 |
| Cr | 19.00 – 23.00 | 19.00 – 23.00 | 19.00 – 23.00 |
| Element | Incoloy Alloy 800/800H/800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 800/800H/800HT Tubing in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 800/800H/800HT Tubing finds widespread application in heat exchangers, superheaters, petrochemical process piping, steam generators, furnace tubing, and nuclear power systems. The tubes are favored by thermal and chemical processing industries because of their exceptional resistance to creep, stress rupture, and thermal fatigue. Their capacity to endure long-term exposure to high temperatures and corrosive chemicals guarantees stable operation and extended service life. The tubing is particularly useful in systems where stability, corrosion resistance, and high-temperature performance are essential for safety and efficiency.
