Jyoti Steels is a leading manufacturer and supplier of Waspalloy Sheet and Plates in Mumbai, India. We enjoy a long-standing reputation for quality and reliability and serve various industrial needs from all over the world. Our Waspalloy products are designed with the latest technology and premium raw materials to perform exceptionally well in harsh conditions. Recognized for high strength, durability, and resistance to corrosion, Jyoti Steels provides customized solutions to suit the exact client requirements, hence a well-reputed name in the industry dealing in metal and alloys.
Waspalloy Sheets and Plates are nickel-based superalloys consisting mainly of Nickel (58%), Chromium (19.5%), Cobalt (13.5%), Molybdenum (4.3%), Titanium (3%), Aluminum (1.4%), and Trace elements. Mechanically, Waspalloy has good high-temperature strength with tensile strength of approximately 155 ksi and yield strength of approximately 120 ksi. Waspalloy has good resistance to creep until 980°C. Physically, it possesses a density of 8.19 g/cm³ and a melting point of 1320–1365°C. Due to these attributes, Waspalloy is suitable for applications in rigorous environments where high heat resistance and mechanical stability are needed.
| Specification : | AMS, AMS, API |

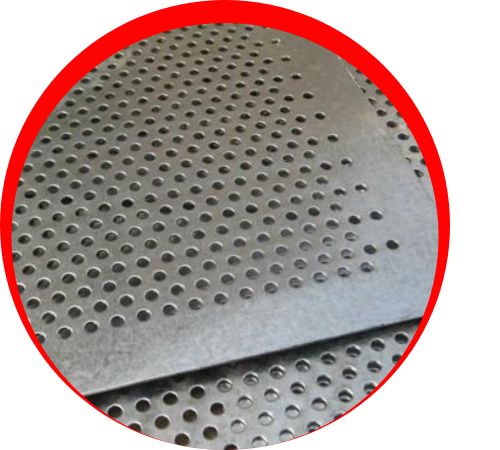

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |

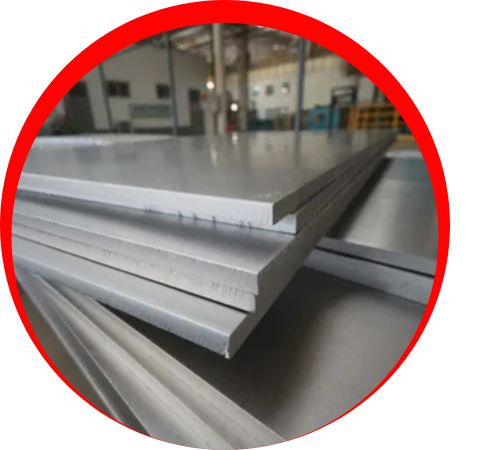

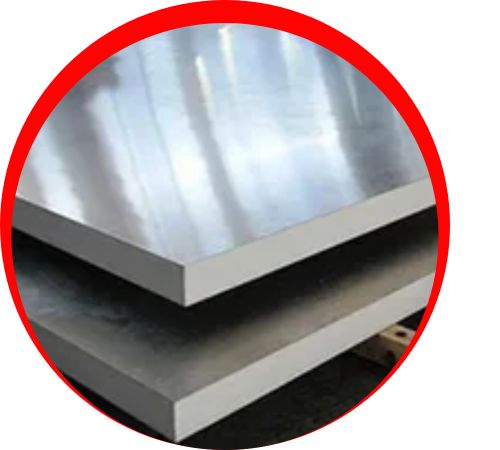

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Waspaloy (UNS-N07001) |
| STANDARD | UNS | Material No |
| Waspaloy | N07001 | 2.4654 |
| Waspaloy | Cr | Ni | Mo | Co | Al | Ti | B | C | Zr | Fe | Mn | Si | P | S | Cu |
| MIN | 18.00 | — | 3.50 | 12.00 | 1.20 | 2.75 | 0.003 | 0.02 | 0.02 | — | — | — | — | — | — |
| MAX | 21.00 | Balance | 5.00 | 15.00 | 1.60 | 3.25 | 0.01 | 0.10 | 0.08 | 2.00 | 0.10 | 0.15 | 0.015 | 0.015 | 0.10 |
| Temperature, °F | Ultimate Tensile Strength, ksi | 0.2% Yield Strength, ksi | Elongation, % | Hardness, Rockwell C |
| 70 | 193 | 132 | 27 | 34-40 |
| 1200 | 173 | 112 | 21 | – |
| 1400 | 140 | 112 | 12 | – |
| 1600 | 79 | 60 | 12 | – |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Waspalloy Sheets & Plates in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Waspalloy Plates and Sheets are extensively applied in high-stress and high-temperature conditions owing to their high strength and resistance to oxidation. Typical applications are aerospace parts, e.g., turbine blades, discs, and shafts for jet engines, gas turbine components, and nuclear reactor parts. They are also used in the chemical processing industry, where materials are required to be resistant to corrosive conditions and extremes of temperature. Waspalloy’s resistance to stress and heat makes it a critical material in defense, automotive, and marine engineering industries. Its repeatable performance assures structural integrity and durability in mission-critical functions.
