Home > Copper Nickel > Copper Nickel 90/10 Tube Fittings
Jyoti Steels is a prominent producer and supplier of Copper Nickel 90/10 Tube Fittings in Mumbai, India. Jyoti Steels is a specialist in producing high-quality non-ferrous metal products and provides tube fittings of Copper Nickel 90/10 alloy, which is renowned for its superior corrosion resistance, especially in seawater and marine environments. With accuracy engineering and emphasis on reliability, these fittings are made to international standards and serve industries like shipbuilding, power generation, chemical processing, and desalination. Jyoti Steels makes sure that each product provides maximum performance in the most challenging environments.
Copper Nickel 90/10 Tube Fittings are made up of 90% Copper and 10% Nickel, with traces of Iron (1.8%) and Manganese (1%) to provide strength and corrosion resistance. These fittings contain tensile strength of 275–345 MPa, yield strength of about 105 MPa, and elongation ratio of 30–40%. Physical properties are density of 8.9 g/cm³, melting point of 1100–1145°C, and negligible electrical conductivity of 10–12% IACS. The excellent resistance of the alloy against seawater corrosion, erosion, and biofouling makes it ideal for sea and high-stress applications.

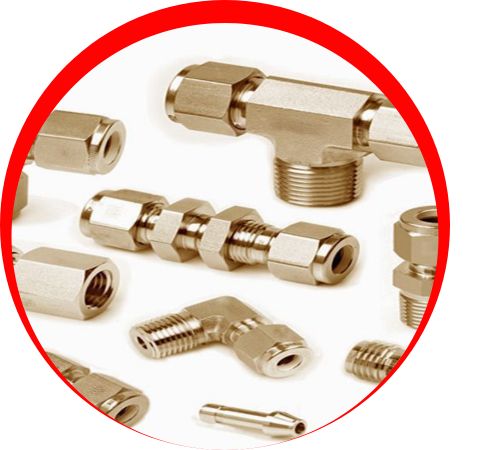

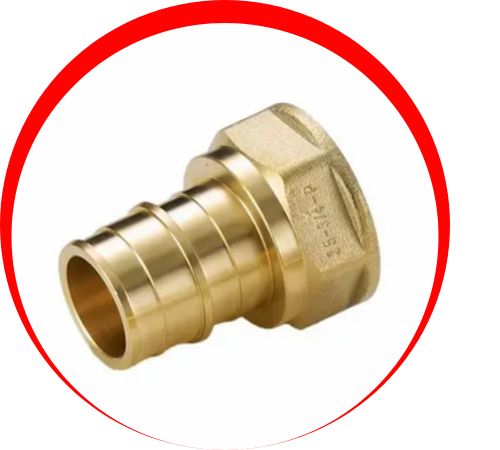

| Types | Tube to Male, Tube to Union, Instrument Pipe Fitting, Tube to Female,Accessories |
|---|---|
| Equivalent To | DK-LOK, PARKER, SWAGELOK, HOKE |
| Sizes | 3mm to 50mm and 1/8’’ to 2’’ |
| Specification | ASTM B467/467M, ASME SB467/467M |
| Grade | Cu-Ni 90/10, 70/30 |
| Ends | Welding, Threaded, JIC |
| Pressure Rating | 6000 & 3000 |
| Threads | BSPT, NPT , BSPP |

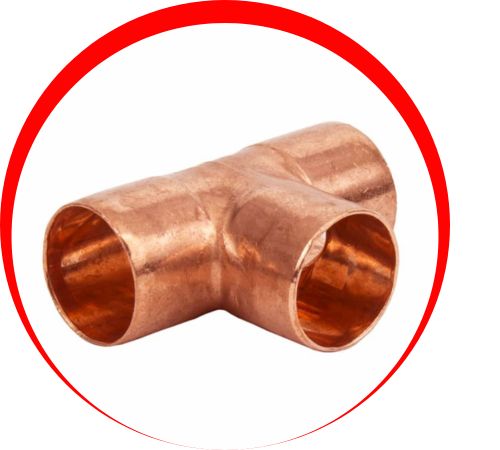

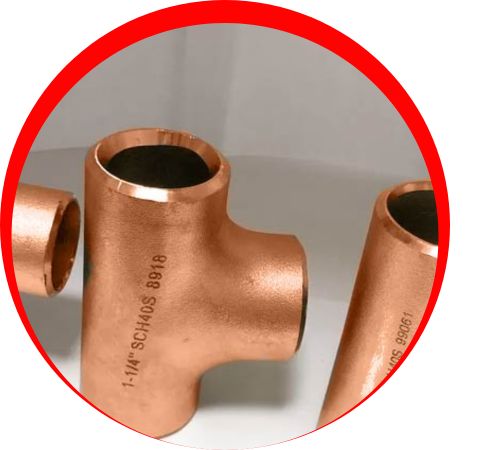

| Form | Elbow, Union, Elbow, Hex Nipple, Adapter, Cap, Tee etc |
| Application | Medical, Instrumentation, Heat Exchangers, Nuclear Power Plants, Hydraulic & Pneumatic system, Aerospace, Automotive industries, Pharmaceutical. |
| Delivery Condition | Machined |
| Inspection, Test Reports | EN 10204 3.1, Mill Test Certificates, Mechanical Reports, Chemical Reports, Visual Inspection Reports, PMI Test Reports, NABL Approved Lab Reports, Third Party Inspection Reports, Non Destructive Test Reports, Destructive Test Report |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | 0.05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Tube Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 90/10 Tube Fittings are most commonly employed in marine, offshore, and desalination applications because of their superior corrosion resistance, especially in seawater environments. The fittings are best suited for seawater piping, heat exchangers, condensers, and shipbuilding. They find application in chemical processing, power plants, and oil refineries as well where reliability and resistance against severe chemicals and high temperatures are essential. In addition to this, Copper Nickel 90/10 tube fittings are utilized in desalination plants and thus are an optimal solution for long-term, high-performance connections under aggressive and varying conditions.
