Home > Copper Nickel > Copper Nickel Bars
Jyoti Steels is a prominent supplier and manufacturer of top-quality Copper Nickel Bars from Mumbai, India. We excel in manufacturing high-performance, corrosion-resistant bars for important applications in the marine, chemical, and industrial sectors. Our Copper Nickel Bars are highly appreciated for their superior mechanical properties, thermal stability, and corrosion resistance in seawater. With dedication to accuracy, quality control, and prompt delivery, Jyoti Steels serves both national and international customers, providing assured solutions that match the best in the industry.
Copper Nickel Bars are generally found in two primary grades: 90/10 (90% Copper, 10% Nickel) and 70/30 (70% Copper, 30% Nickel), with minor additions of Iron (0.4–1.0%) and Manganese (0.5–1.0%) for strength and corrosion resistance. These bars have a tensile strength of 350–550 MPa, yield strength of 150–250 MPa, and elongation of 30–40%. The density is around 8.9 g/cm³, with a melting point of 1170°C to 1240°C. Copper Nickel bars have superior resistance to stress corrosion, erosion, and biofouling, as well as good weldability and moderate electrical conductivity.
| Specifications | ASTM B151, ASME SB151 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5 To 500 mm thick in 100 TO 6000 mm |

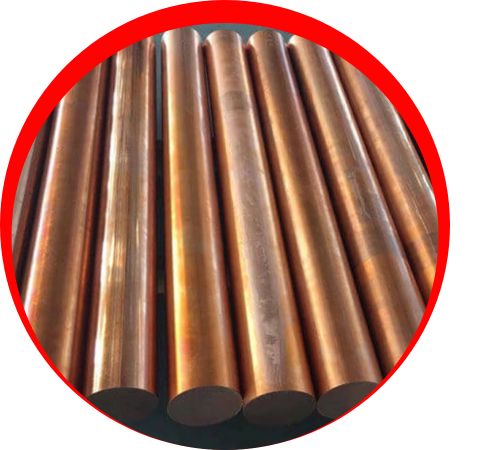

| Cu-Ni Round Bars | 6 to 120 mm. |

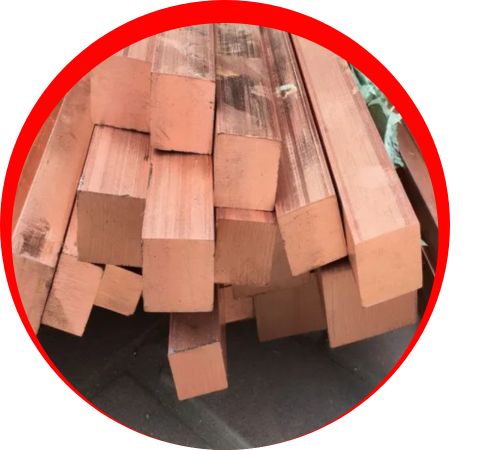

| Cu-Ni Square Bars | 10 to 200 mm. |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 100 to 3660 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | Cu | Pb | Fe | Zn | Ni | Mn |
| Copper Nickel | 65.0 min | .05 max | 0.4-1.0 | 1 max | 29-33 | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel Bars in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel Bars find extensive use in applications where there is a need for high resistance to corrosion, particularly in marine and offshore environments. They are best suited for use in shipbuilding, seawater piping, condenser systems, heat exchangers, and desalination plants. In the chemical sector, these bars find application in components of reactors, piping, and valve assemblies. Due to their high strength and durability, they are applicable in the production of fasteners, flanges, pump components, and fittings. Their thermal stability and fabricability also enable their application in power generation, HVAC systems, and industrial machinery under aggressive media and varying temperatures.
