Jyoti Steels is a well-established manufacturer and supplier of Copper Nickel Forged Fittings in Mumbai, India. As a leading manufacturer focused on delivering corrosion-resistant and high-performance parts, Jyoti Steels supplies products to various industries like marine, oil & gas, chemical processing, and power generation. Jyoti Steels’ Copper Nickel forged fittings are designed for enhanced strength, leak-tight connections, and prolonged service life under demanding conditions. Made to international quality standards, these fittings are produced in different grades and sizes, and Jyoti Steels becomes a go-to supplier for trusted pipe fitting solutions in demanding industries.
Copper Nickel Forged Fittings are typically manufactured from Cu-Ni 90/10 (90% copper, 10% nickel) or Cu-Ni 70/30 (70% copper, 30% nickel) alloys. They also contain minor amounts of iron (up to 1.8%) and manganese (up to 1%) for increased strength and corrosion resistance. The fittings provide mechanical properties like tensile strength of 300–500 MPa, yield strength of 100–150 MPa, and elongation of 30–35%. Physical characteristics are a density of 8.9 g/cm³, a melting point of 1100–1240°C, and thermal conductivity of 29–50 W/m·K, providing durability and performance in seawater and chemical environments.
| Specifications | ASTM B466/ ASME SB466 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

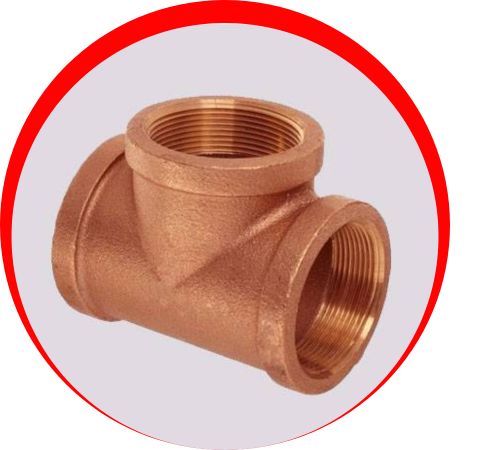

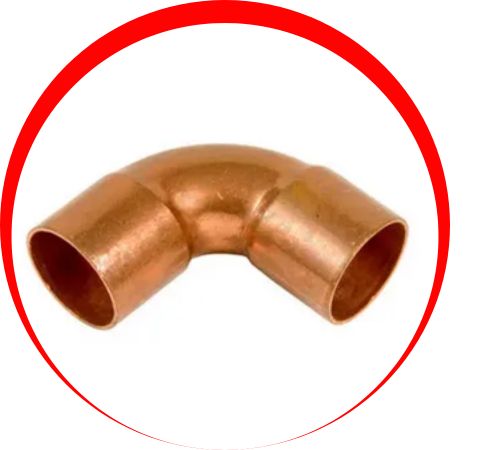

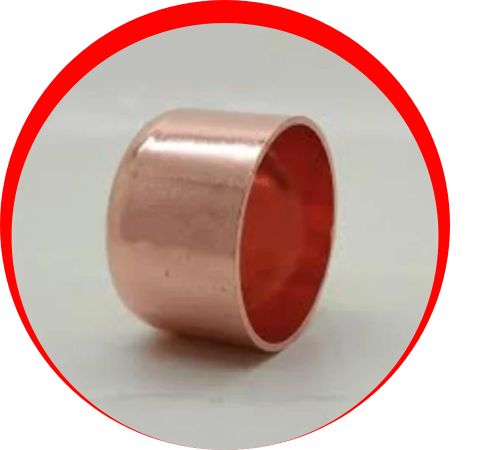

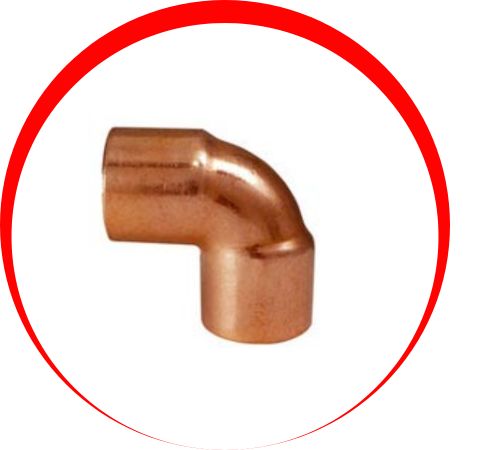

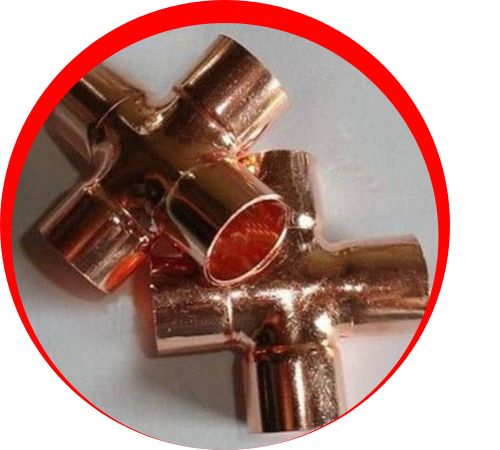

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel Forged Fittings in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel Forged Fittings are widely used in marine applications, including shipbuilding, seawater cooling systems, and ballast systems, due to their excellent resistance to saltwater corrosion and biofouling. In offshore oil and gas facilities, they are used in piping connections exposed to high pressure and corrosive media. These fittings are also employed in power plants, chemical processing units, and desalination plants for reliable fluid handling. Their enhanced weldability, strength, and thermal stability qualify them to be used in heat exchangers, condenser systems, and firefighting pipelines, and they will deliver long-term performance in extreme industrial conditions.
