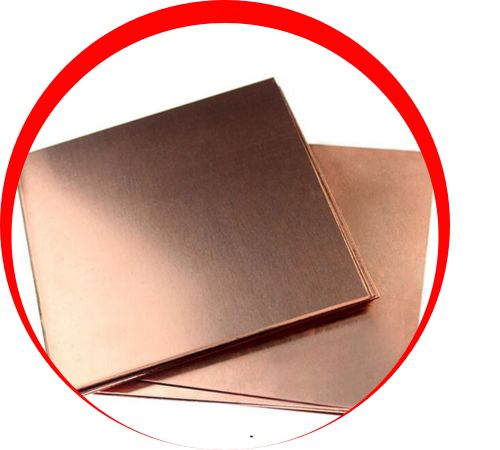

Jyoti Steels, Mumbai, India, is a reliable maker and supplier of Copper Nickel Sheets and Plates with high-quality products, renowned for their superior corrosion resistance, strength, and heat stability. Available in grades such as 90/10 and 70/30, the sheets and plates are best suited for use in marine, chemical, and power sectors. Jyoti Steels maintains precision fabrication and rigid quality checks to international standards. With a robust client base in India as well as abroad, the company is dedicated to offering trustworthy and effective solutions that cater to essential industrial needs.
Copper Nickel Sheets and Plates, specifically the 90/10 (Cu-Ni) grade, have about Copper 88.6–90%, Nickel 9–11%, Iron ≤1.8%, Manganese ≤1%, and trace elements ≤0.5%. The alloys provide tensile strength of 280–390 MPa, yield strength of 100–150 MPa, and elongation of 30–40%. Having a density of 8.9 g/cm³ and melting point of ~1170–1240°C, they are renowned for excellent thermal conductivity and resistance to biofouling and seawater corrosion. Their excellent strength-to-weight ratio, weldability, and resistance to high-pressure, high-temperature conditions qualify them for use in many industrial and marine applications.
| Specifications | ASTM B171, B122 / ASME SB171, SB122 |
| Standards | ASTM, ASME and API |
| Size | 1 mm to 100 mm |

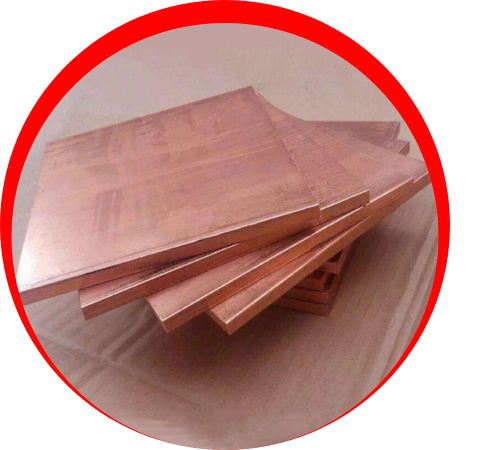

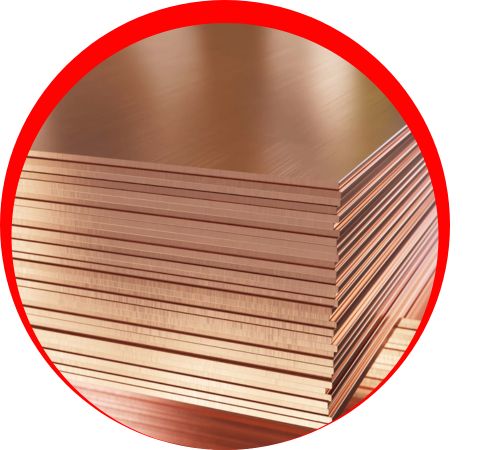

| Finishing | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

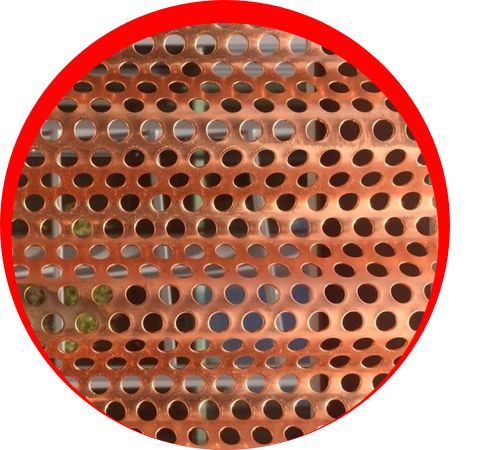

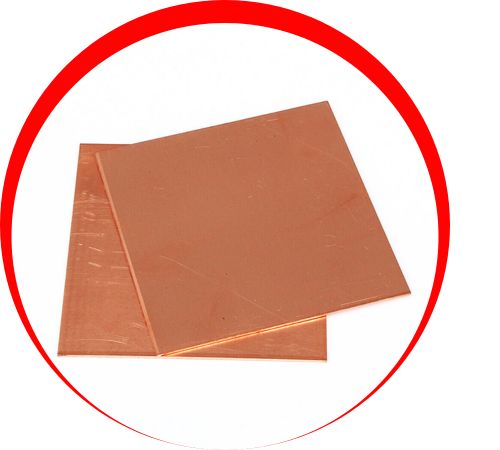

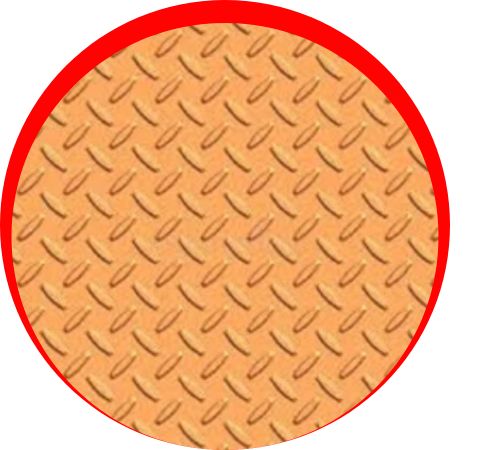

| Form | Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray, Roll Etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | UNS NO. C92200 & UNS NO. C83600, UNS NO. C70600 ( CU -NI- 90/10), C71500 ( CU -NI- 70/30), UNS NO C10100, C10200, C10300, C10800, C12000, C12200. |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cupro Nickel | 88.6 min | 1.0 max | 0.05 max | 9-11 max | 1.8 max | 1 max |
| Element | Copper Nickel 90/10 |
|---|---|
| Density | 8.1 g/cm3 |
| Melting Point | 1443 °C (2430 °F) |
| Tensile Strength | Psi -80,000, MPa -551 |
| Yield Strength (0.2%Offset) | Psi – 35,000, MPa – 241 |
| Elongation | 30 % |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel Sheet and Plates in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel Sheets and Plates find extensive applications in marine use, such as ship hulls, seawater piping, condenser tubes, and heat exchangers, owing to their high resistance to saltwater corrosion and biofouling. They are applied in the chemical and petrochemical sectors for pressure vessels and storage tanks facing corrosive media. They also occur in desalination plants, offshore platforms for oil, and power plants, where both mechanical stability and corrosion resistance are needed. Furthermore, they are applied in vehicle braking systems, coinage, and heating, ventilation, and air conditioning systems due to their thermal conductivity and ease of manufacturing.
