Jyoti Steels is a prominent manufacturer and supplier of Copper Nickel 70/30 Pipes from Mumbai, India. We are renowned for providing corrosion-resistant piping solutions of high quality, catering to marine, offshore, power generation, and chemical processing industries. Our Cu-Ni 70/30 Pipes are manufactured to international standards and are reliable in highly corrosive environments. With state-of-the-art manufacturing facilities, strict quality checks, and a customer-centric mindset, Jyoti Steels offers strong and resistant pipe solutions custom-made for mission-critical applications in the domestic as well as international markets.
Copper Nickel 70/30 Pipes are made of about 70% Copper and 30% Nickel, along with minor amounts of Iron (0.4–0.6%) and Manganese (0.4–1.0%) for added strength and corrosion resistance. These pipes have a tensile strength of 320–500 MPa, yield strength of 120–150 MPa, and elongation of 30–40%. With a density of 8.95 g/cm³ and melting point of approximately 1170–1240°C, they have superior resistance to seawater, erosion, and biofouling. Their mechanical stability and good thermal conductivity render them apt for application in high-temperature, high-pressure, and saltwater-based systems.
| ASTM Specification | ASTM B466/ ASME SB466, ASTM B467/ ASME SB467, ASTM B608 |
|---|---|
| Standard | GB, DTD, ASME, AISI, ASTM, TOCT, JIS, NF, SAE, DIN, AMS, DS, EN |
| Size of Seamless Pipe | Wall thickness.: 0.05- 20 milimeter, 4 – 219 milimeter |
| Size of Welded Pipe | 5.0 to 1219.02 milimeter |
| size of EFW Pipe | 5.0 to 1219.02 milimeter |
| Seamless Tube Size | 3.35 milimeter To 101.6 milimeter OD |
| Welded Tube Size | 6.35 milimeter To 152 milimeter OD |
| Bwg & Swg | 18 Swg., 14 20 Swg., Swg. Swg., 12 16 Swg., 10 Swg. |
| Tubing wall thickness | 0.020″ –0.220″, (custom wall thicknesses available) |
| Pipe Schedule | SCH20, XS, STD, XXS, SCH60, SCH140, SCH80, SCH80, SCH5, SCH40S, SCH40, SCH120, SCH10S, SCH10, SCH30, SCH160 |
| Length | Standard & Cut length , Single Random, Double Random Pipe |

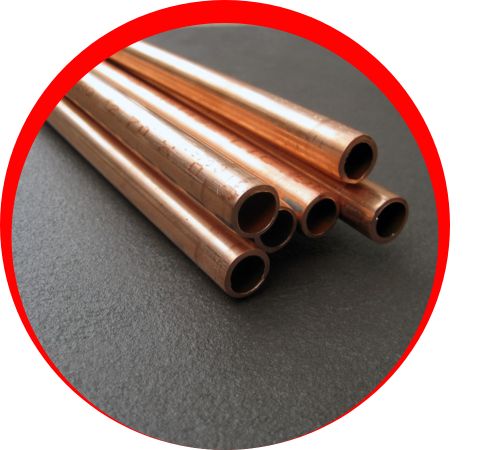

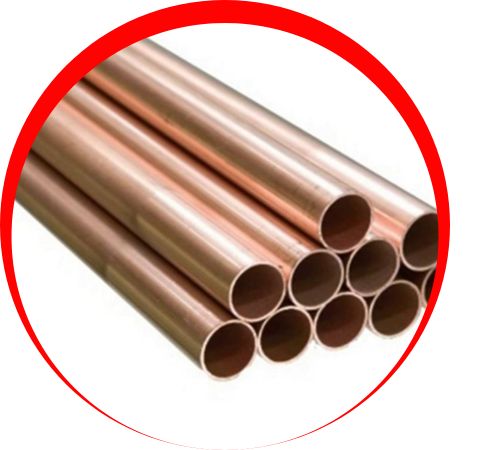

| Finish | AP (Annealed & Pickled), BA (Bright & Annealed), NO.1, 2B, Polished, MF, HL, NO.4, Mirror finish, BA, 8K etc |
| End | Plain End, Beveled End, Treaded Pipe, Screwed ends |

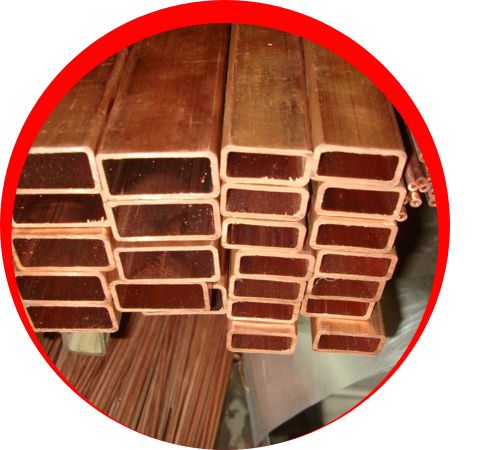

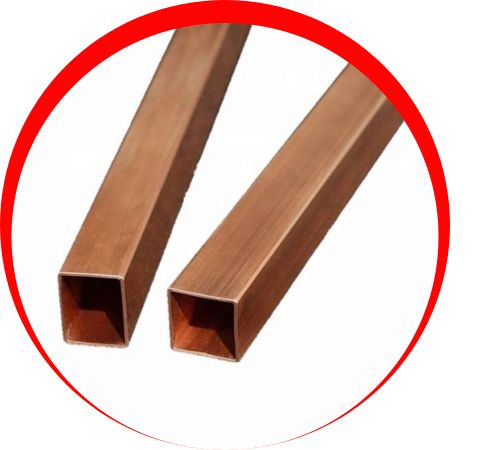

| Form | Hydraulic, Rectangular, Coiled, Square, Hollow, Round, Straight Pipes/tubes, “U” Shape, Pan Cake Coils, Boiler, LSAWetc. |
| Application | Dairy Pipe, Oil Pipe/tube, Gas Pipe/tube, Fluid Pipe/tube, Boiler Tube, Heat exchanger Tube |
| Type | Seamless /ERW/ EFW / Welded / Fabricated /CDW /DOM/CEW Copper Nickel 70/30 Pipe |
| Cu | Pb | Mn | Fe | Zn | Ni | |
|---|---|---|---|---|---|---|
| MIN | 65.000 | – | – | 0.400 | – | 29.000 |
| MAX | 70.000 | 0.500 | 1.000 | 1.000 | 1.000 | 33.000 |
| Yield Strength 0.2% Proof (MPa) |
Yield Strength 0.2% Proof (MPa) |
Tensile strength (MPa) |
Elongation (% in 50mm) |
Hardness (HRB) |
|---|---|---|---|---|
| MIN | 88 | 372 | 45.00 | |
| MAX | 483 | 517 | 51 |
| Density | kg/dm³ | 8.95 |
|---|---|---|
| Melting Range | °C | 1170-1240 |
| Specific Heat | J/kg °K | 377 |
| Thermal Conductivity | W/m°K | 29 |
| Coeff. of Linear Expansion 10-300°C” | 10-6/°K | 16 |
| Electrical Resistivity | microhm. cm | 34 |
| Modulus of Elasticity | GPa | 152 |
| Modulus of Rigidity | GPa | 56 |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 70/30 Pipes in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 70/30 Pipes find extensive application in seawater cooling applications in marine and offshore industries, firefighting installations, and piping for bilge and ballast. Their higher resistance to seawater corrosion has made them particularly suitable for naval and shipbuilding applications. Copper Nickel 70/30 Pipes are also utilized in heat exchangers, condensers, evaporators, and seawater desalination plants on account of their high thermal conductivity and anti-biofouling characteristics. In power generation and chemical industries, these pipes are used in fluid handling applications where they face intense chemicals and high temperatures. Their durability and ease of fabrication make them a good choice for harsh environments that demand long-term, low-maintenance performance.
