Home > Copper Nickel > Copper Nickel 90/10 Bars
Jyoti Steels is a leading producer and supplier of Copper Nickel 90/10 Bars in Mumbai, India. Committed to providing top-quality non-ferrous metal products, Jyoti Steels specializes in the production of bars that have superior corrosion resistance, particularly in marine and seawater conditions. Renowned for precision engineering and international standards, the company deals with major industries such as shipbuilding, offshore, desalination, and heat exchanger production. Jyoti Steels guarantees high performance and endurance in each product, a source that is relied upon for Copper Nickel 90/10 Bars both in domestic as well as international markets.
Copper Nickel 90/10 Bars contain around 90% Copper and 10% Nickel, with minor additions of Iron (1.8%) and Manganese (1%) for increased corrosion resistance and strength. These bars have a tensile strength of 275–345 MPa, yield strength of approximately 105 MPa, and elongation of 30–40%. Their physical characteristics are a density of 8.9 g/cm³, electrical conductivity of approximately 10–12% IACS, and melting point of around 1100–1145°C. The balance of mechanical strength and strong resistance to saltwater corrosion of this alloy makes it extremely useful for marine as well as industrial applications.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

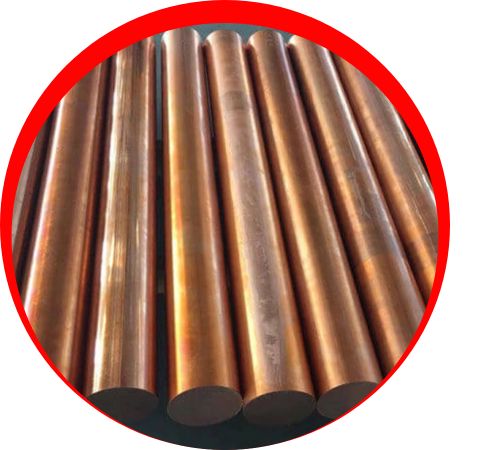

| Round bar size | Diameter: 3-~800mm |

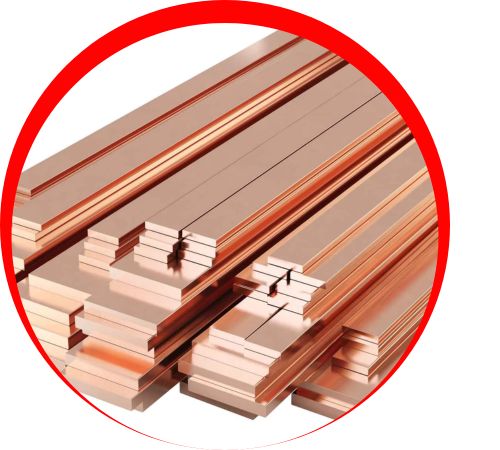

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

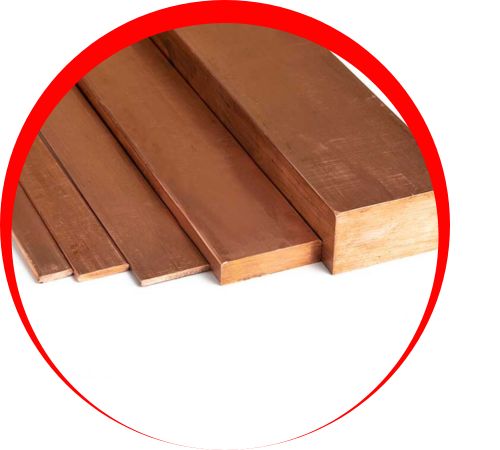

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

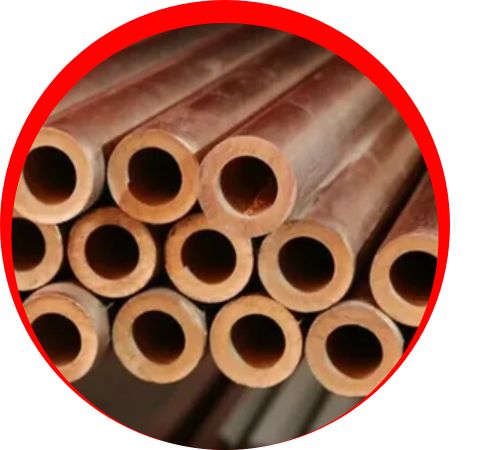

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height: |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |

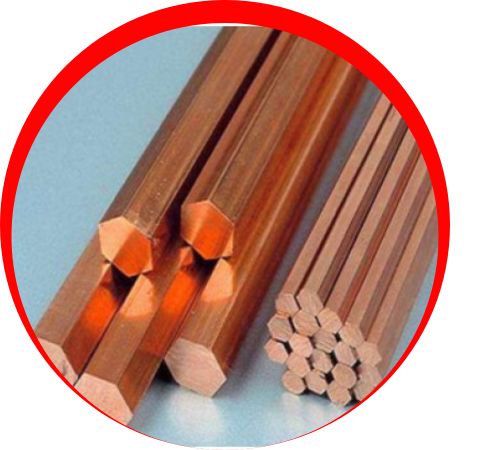

| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | Element | |||||||
|---|---|---|---|---|---|---|---|---|
| Cu | 88.7 | |||||||
| Fe | 1.3 | |||||||
| Ni | 10.0 | |||||||
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | 42.00% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Bars in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel 90/10 Bars are extensively applied in marine engineering for purposes like seawater piping, condenser tubes, and heat exchangers because of their excellent resistance to corrosion, erosion, and biofouling. They are also employed in the production of ship hulls, offshore platforms, and desalination plants. Apart from marine applications, these bars are utilized in chemical processing, power generation, oil refineries, and instrumentation systems. Their good thermal conductivity and resistance to high temperatures make them ideal for cryogenic and condenser equipment. The workability and toughness of the alloy guarantee consistent performance in extreme and demanding conditions.
