Jyoti Steels is a renowned manufacturer and supplier of Titanium Gr 7 Pipes in Mumbai, India, providing corrosion-proof solutions for highly challenging industrial applications. Titanium Grade 7 is a corrosion-resistant alloy, analogous to Grade 2 but comprising the addition of palladium, resulting in high resistance to reducing acids and crevice corrosion. Jyoti Steels offers better product quality, accurate specifications, and timely delivery for mission-critical applications. With experience in processing specialized alloys, the company serves customers in chemical processing, power generation, marine, and other high-corrosion applications in India and abroad.
Titanium Gr 7 Pipes are essentially made up of Titanium (~99.1%) with Palladium (0.12% to 0.25%), which greatly improves corrosion resistance. Other constituents are Oxygen (≤0.25%), Iron (≤0.30%), Carbon (≤0.08%), Nitrogen (≤0.03%), and Hydrogen (≤0.015%). Grade 7 provides mechanical properties close to those of Grade 2, tensile strength of around 345 MPa, yield strength of about 275 MPa, and elongation of around 20%. It has a density of 4.51 g/cm³ and a melting point close to 1665°C, with outstanding resistance to both oxidizing and reducing agents, primarily in acidic as well as chloride-containing media.
| Standards : | ASTM B862, B861 / ASME SB862, SB861 |
| Dimensional : | ANSI/ASME X6.19M, ANSI/ASME X6.10M |

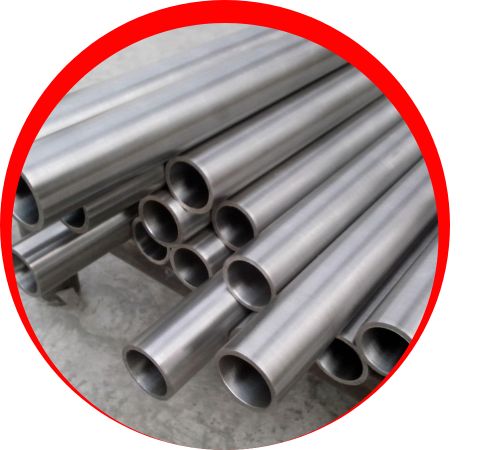

| Seamless Pipe Size : | 1 / 2″ NB – 16″ NB |

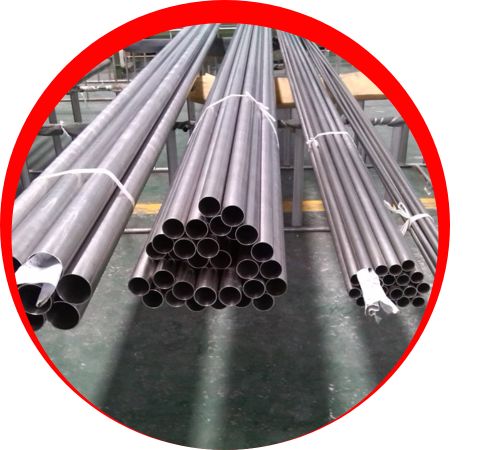

| Welded Pipe Size : | 1 / 2″ NB – 24″ NB |
| Outside Diameter : | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |

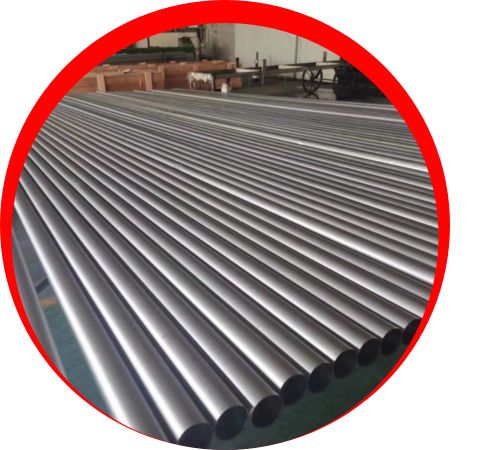

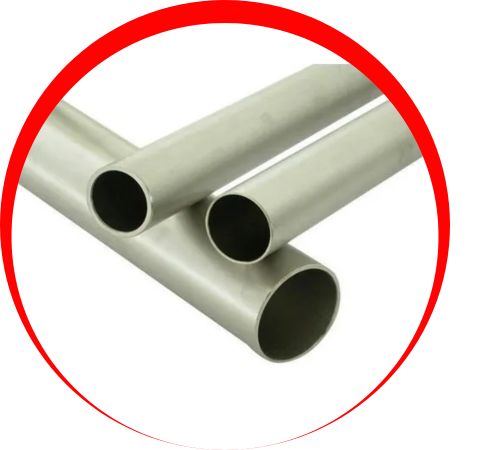

| Pipe Type : | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Thickness Range : | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Pipes End : | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Value Added Services : | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Grade | Fe | O | C | N | H | Pd | Ti |
| Titanium Gr. 7 | 0.30 max | 0.25 max | 0.08 max | 0.03 max | 0.0150 max | 0.20 max | Balance |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3 | 1668 °C | Psi – 39900 , MPa – 275 | Psi – 59500 , MPa – 410 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 7 | 3.7235 | R52400 |
At Jyoti Steels, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 7 Pipes in Mumbai, India, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the India, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Gr 7 Pipes are well suited for use in applications where exposure to highly corrosive media is expected. For piping systems, reactor vessels, and heat exchangers dealing with hydrochloric acid, sulfuric acid, and other aggressive chemicals in the chemical processing field, they are employed. Grade 7 pipes exhibit superb seawater corrosion resistance in desalination and marine systems. They are employed in the power generation industry in condenser tubing and cooling systems. They are also applied in pharmaceutical and pulp & paper industries, where material purity and corrosion resistance are essential. Their palladium content makes them appropriate for harsh environments demanding long-term durability.
